HMC774ALC3B

PRODUCTION

7 GHz to 34 GHz, MMIC, Double Balanced Mixer

Analog Devices HMC774ALC3B Product Info

10 February 2026 6

Features

Passive: no dc bias required
Input IP3: 20 dBm typical, downconverter
LO to RF isolation: 30 dB typical

Wide IF bandwidth: DC to 8 GHz

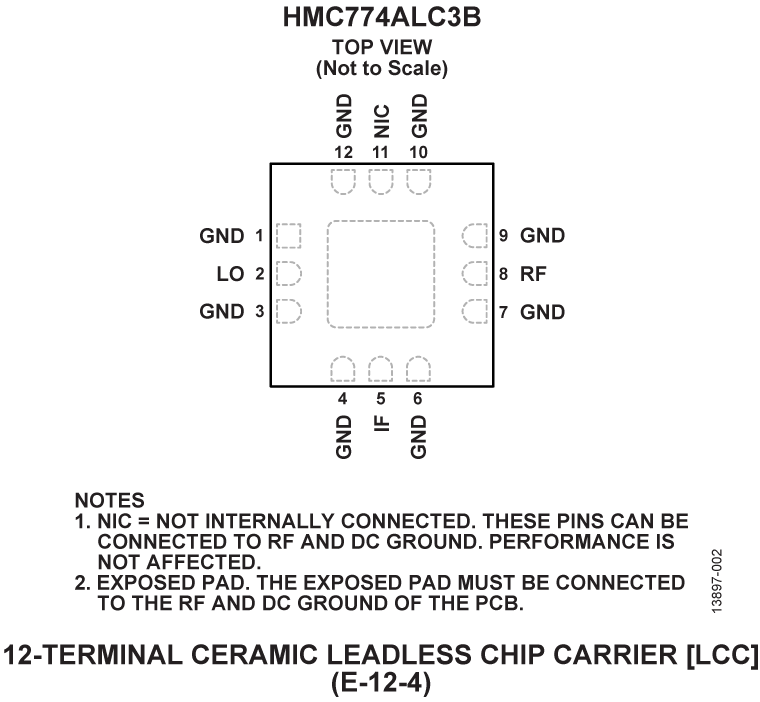

12-terminal, ceramic, 3 mm × 3 mm, leadless chip carrier

Part details & applications

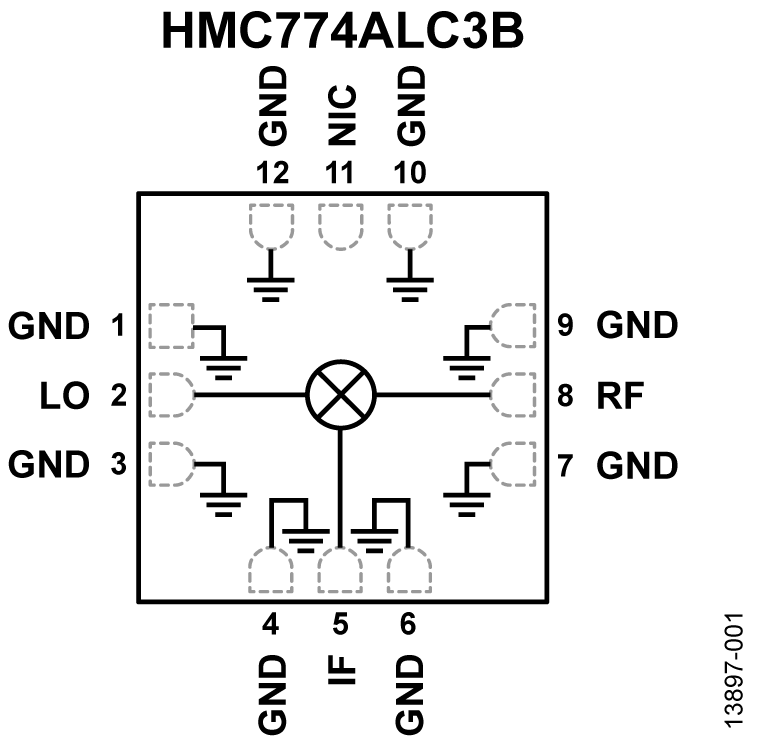

The HMC774ALC3B is a general-purpose, double balanced mixer in a leadless, RoHS compliant, surface-mount package that can be used as an upconverter or downconverter between 7 GHz and 34 GHz. This mixer requires no external components or matching circuitry. The HMC774ALC3B provides excellent LO to RF and LO to IF isolation due to optimized balun structures.

The mixer operates best with a LO drive level of 15 dBm (typical). The HMC774ALC3B eliminates the need for wire bonding, allowing use of surface-mount manufacturing techniques.

APPLICATIONS

Point to point radios
Point to multipoint radios and very small aperture terminals (VSATs)
Test equipment and sensors
Military end-use
