HMC7585

NOT RECOMMENDED FOR NEW DESIGNS

E-Band Upconverter SiP 81 - 86 GHz

Analog Devices HMC7585 Product Info

10 February 2026 6

Features

Conversion Gain: 32 dB typical
Gain Control Range: 40 dB typical
Saturated Output Power (P_SAT): 24 dBm typical
Output Third-Order Intercept (IP3): 30 dBm typical
Output Power for P1dB Compression: 23 dBm
Built-in Power Detector
Built-in Envelope Detector for I/Q Mismatch Correction
Fully Integrated In Surface Mount 50-Lead 16 mm x 14 mm Package

Part details & applications

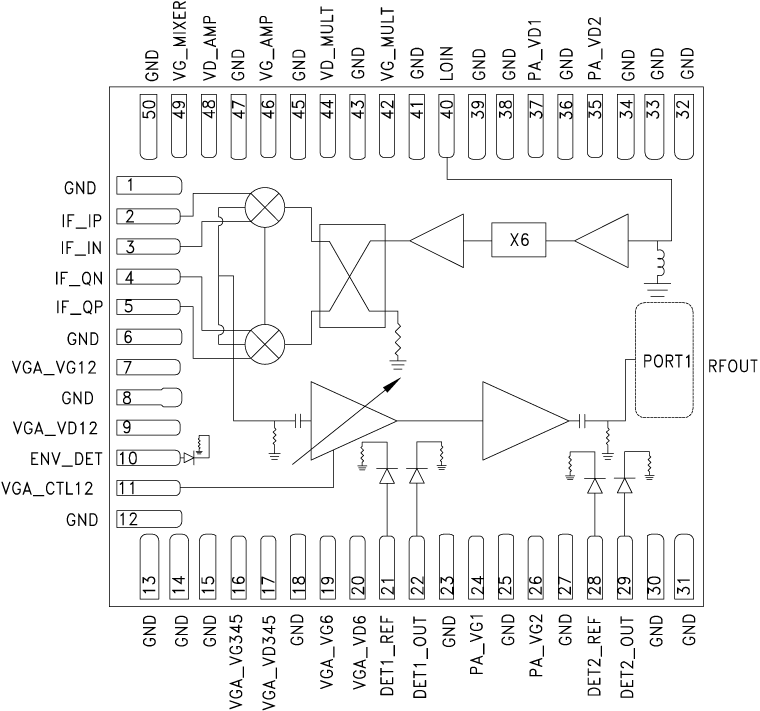

The HMC7585LG is fully integrated System in Package (SiP) in phase/quadrature (I/Q) upconverter that operates from 81 GHz to 86 GHz. The device uses an image rejection mixer that is driven by a 6 × LO multiplier. A variable gain amplifier followed by a medium power amplifier are added to the mixer outputs to provide a small signal conversion gain of 32 dB typical. Differential I and Q mixer inputs are provided and can be driven with differential I and Q baseband waveforms for direct conversion applications. Alternatively, the inputs can be driven using an external 90° hybrid and two external 180° hybrids for single-sideband applications.

Applications

E-Band Communication Systems
High Capacity Wireless Backhaul
Test & Measurement
