HMC6475
  • HMC6475

HMC6475

RECOMMENDED FOR NEW DESIGNS

Wideband MMIC VCO with Buffer Amplifier 3.90 - 7.50 GHz

Analog Devices HMC6475 Product Info

10 February 2026 6

Features

  • Wide Tuning Bandwidth
  • Pout: +5 dBm
  • Low SSB Phase Noise: −106 dBc/Hz @100 kHz
  • No External Resonator Needed
  • Single Positive Supply: +5V @ 53 mA
  • Ceramic Leadless SMT Package: 16 mm²

Part details & applications

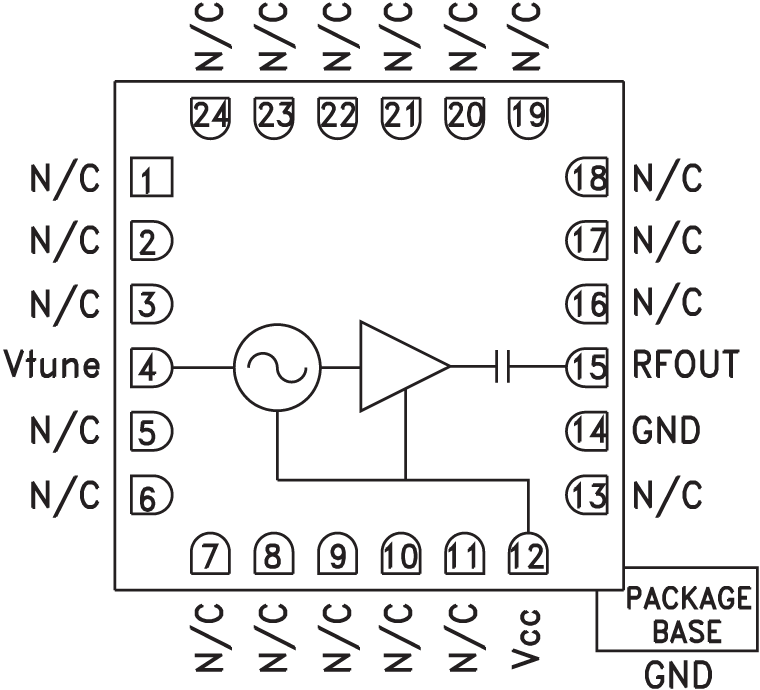

The HMC6475LC4B is a wideband MMIC Voltage Controlled Oscillator which incorporates the resonator, negative resistance device, and varactor diode. Output power and phase noise performance are excellent over temperature due to the oscillator’s monolithic construction. The Vtune port accepts an analog tuning voltage from 0 to +23V. The HMC6475LC4B VCO operates from a single +5V supply, consumes only 53 mA of current, and is housed in a RoHS compliant SMT package. This wideband VCO uniquely combines the attributes of ultra small size, low phase noise, low power consumption, and wide tuning range.

Applications

  • Low Noise wideband MMIC VCO is ideal for:
    • Industrial/Medical Equipment
    • Test & Measurement Equipment
    • Satcom
    • Military Radar, EW, & ECM
