HMC641ALP4E

PRODUCTION

0.1 GHz to 20 GHz GaAs, Nonreflective, SP4T Switch

Analog Devices HMC641ALP4E Product Info

10 February 2026 5

Features

Broadband frequency range: 0.1 GHz to 20 GHz
Nonreflective 50 Ω design
Low insertion loss: 3.0 dB at 20 GHz
High isolation: 40 dB at 20 GHz
High input linearity at 250 MHz to 20 GHz
- P1dB: 24 dBm typical
- IP3: 41 dBm typical
High power handling
- 26.5 dBm through path
- 23 dBm terminated path
Integrated 2 to 4 line decoder

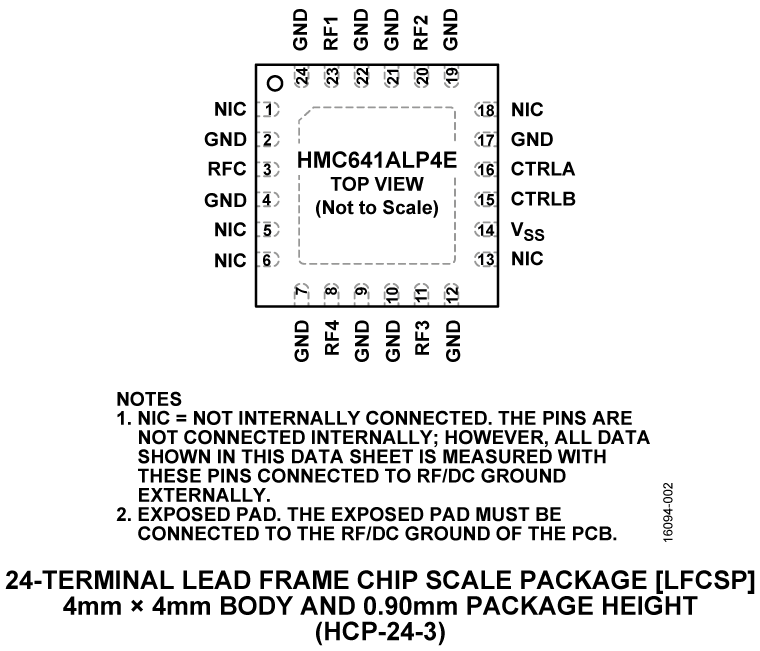

24-lead, 4 mm × 4 mm LFCSP package
ESD rating: 250 V (Class 1A)

HMC641ATCPZ-EP supports defense and aerospace applications (AQEC standard)

Download HMC641ATCPZ-EP data sheet (pdf)
Military temperature range (−55°C to +125°C)
Controlled manufacturing baseline
One assembly/test site
One fabrication site
Enhanced product change notification
Qualification data available on request

Part details & applications

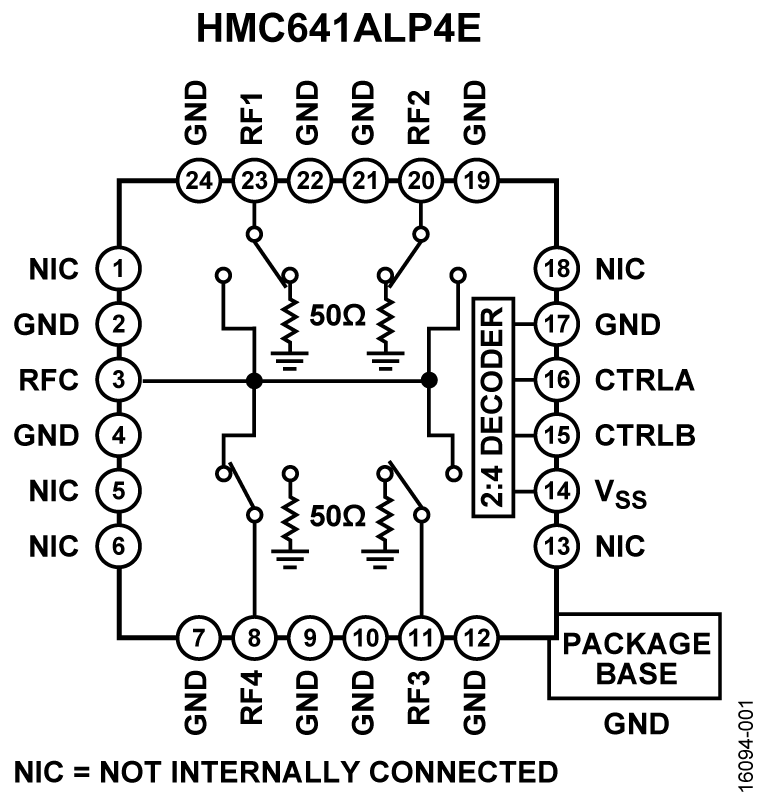

The HMC641ALP4E is a general-purpose, nonreflective, single-pole, four-throw (SP4T) switch manufactured using a gallium arsenide (GaAs) process. This switch offers high isolation, low insertion loss, and on-chip termination of the isolated ports.

The switch operates with a negative supply voltage range of −5 V to −3 V and requires two negative logic control voltages.

The HMC641ALP4E includes an on-chip, binary 2 to 4 line decoder that provides logic control from two logic input lines.

The HMC641ALP4E comes in a 4 mm × 4 mm, 24-lead LFCSP package and operates from 0.1 GHz to 20 GHz.

Applications

Test instrumentation
Microwave radios and very small aperture terminals (VSATs)
Military radios, radars, and electronic counter measures (ECMs)
Broadband telecommunications systems
