HMC554A-DIE

PRODUCTION

10 GHz to 20 GHz, GaAs, MMIC, Double-Balanced Mixer

Analog Devices HMC554A-DIE Product Info

10 February 2026 6

Features

Conversion loss of up to 8.5 dB (typical)
LO to RF Isolation: 38 dB (typical)
Input IP3 of up to 20 dBm (typical)

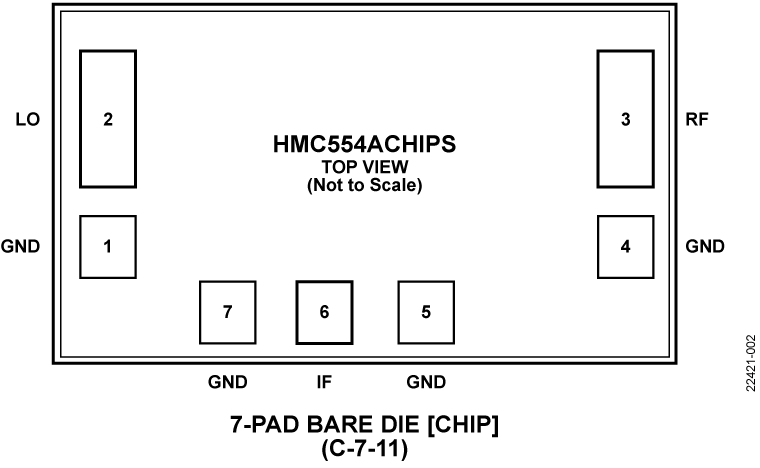

RoHS compliant, 7-pad, bare die CHIP

Part details & applications

The HMC554ACHIPS is a general-purpose, double-balanced mixer that can be used as an upconverter or a downconverter between 10 GHz and 20 GHz. This mixer is fabricated in a gallium arsenide (GaAs), metal semiconductor field effect transistor (MESFET) process and requires no external components or matching circuitry. The HMC554ACHIPS optimized balun structures provide high local oscillator (LO) to RF isolation and LO to intermediate frequency (IF) isolation, 38 dB and 52 dB, respectively.

Applications

Microwave and very small aperture terminal (VSAT) radios
Test equipment
Military electronic warfare (EW), electronic countermeasure (ECM), and command, control, communications and intelligence (C3I)
