Analog Devices DS28C16 Product Info

• Robust Countermeasures Protect Against Security Attacks
  • All Stored Data Cryptographically Protected from Discovery
• Efficient Secure Hash Algorithm Authenticates Peripherals
  • FIPS 202-Compliant SHA-3 Algorithm for Challenge/Response Authentication
  • FIPS 198-Compliant Keyed-Hash Message Authentication Code (HMAC)
• Supplemental Features Enable Easy Integration into End Applications
  • 17-Bit One-Time Settable, Nonvolatile Decrement-Only Counter with Authenticated Read
  • Secure Storage for Secrets
  • 256 Bits of Secure EEPROM for User Data
  • Unique and Unalterable Factory Programmed 64-Bit Identification Number (ROM ID)
  • I²C Communications Up to 1MHz
  • Operating Range: 1.62V–3.63V, -40°C to +85°C
  • 8-Pin, 2mm x 2mm TDFN-EP Package

The DS28C16 secure authenticator combines FIPS202-compliant Secure Hash Algorithm (SHA-3) challenge and response authentication with secured EEPROM.

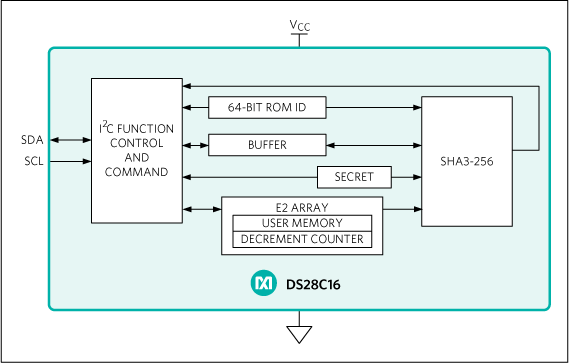

The device provides a core set of cryptographic tools derived from integrated blocks including a SHA-3 engine, 256 bits of secured user EEPROM, a decrement-only counter and a unique 64-bit ROM identification number (ROM ID). The unique ROM ID is used as a fundamental input parameter for cryptographic operations and serves as an electronic serial number within the application.

Applications

• Accessory and Peripheral Secure Authentication
• Battery Authentication and Charge Cycle Tracking
• Medical Tools/Accessories Authentication and Calibration
