Analog Devices ADV7281A Product Info

• Worldwide NTSC/PAL/SECAM color demodulation support
• One 10-bit ADC, 4× oversampling per channel for CVBS, Y/C, and YPrPb modes
• 6 analog video input channels with an on-chip antialiasing filter
• Video input support for CVBS (composite), S-Video (Y/C), and YPrPb (component)
• Fully differential, pseudo differential, and single-ended CVBS video input support
• NTSC/PAL/SECAM autodetection
• STB diagnostics on 2 video inputs
• Up to 4 V common-mode input range solution
• Excellent common-mode noise rejection capabilities
• 5-line adaptive 2D comb filter and CTI video enhancement
• Integrated AGC with adaptive peak white mode
• Fast switching capability
• ACE
• Downdither (8-bit to 6-bit)
• Rovi copy protection detection
• MIPI CSI-2 Tx output interface
• Full featured VBI data slicer with WST support
• Power-down mode available
• 2-wire, I²C-compatible serial interface
• Qualified for automotive applications
• −40°C to +105°C temperature grade

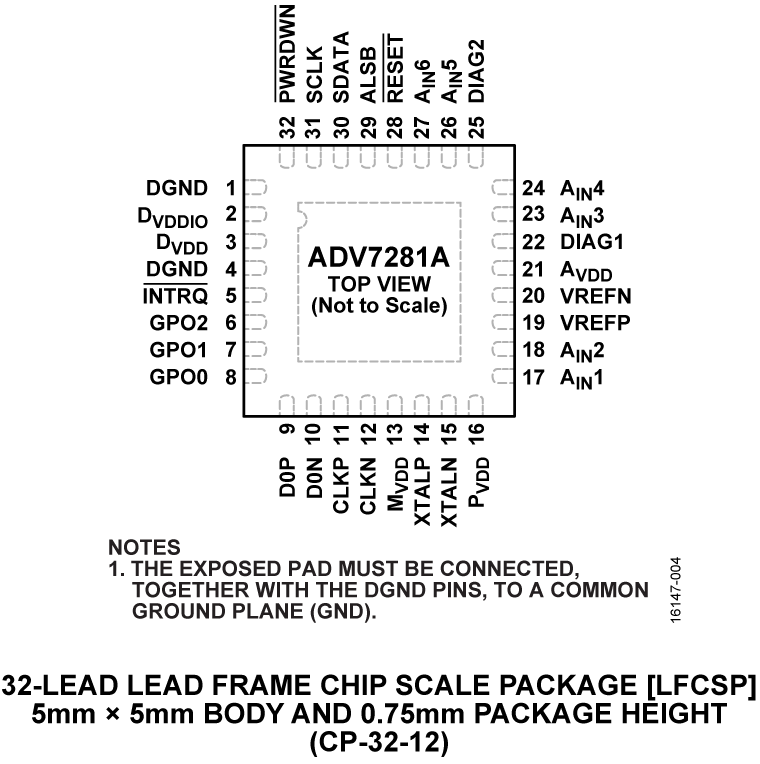

• 32-lead, 5 mm × 5 mm, RoHS compliant LFCSP

The mobile industry processor interface (MIPI^®) model of the ADV7281A (ADV7281A-M) has the same pinout as and is software compatible with the ADV7281-M with the exception of an updated IDENT code.

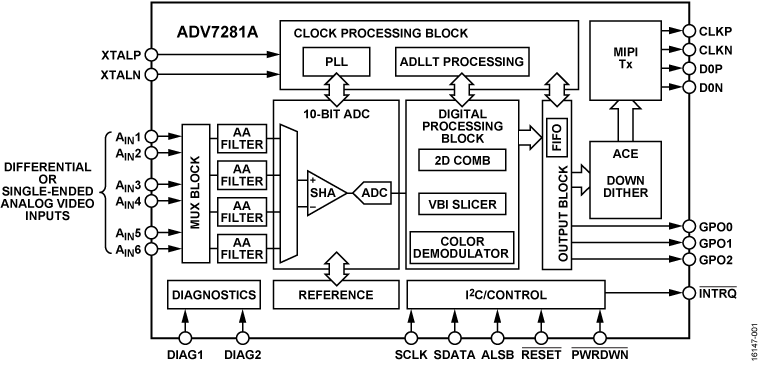

The ADV7281A is a versatile one-chip, multiformat video decoder that automatically detects standard analog basebandvideo signals and converts them into YCrCb 4:2:2 component video data streams.

The analog input of the ADV7281A features a single 10-bit analog-to-digital converter (ADC) and an on-chip differential to single-ended converter to accommodate the direct connection of differential, pseudo differential, or single-ended CVBS without external amplifier circuitry.

The standard definition processor (SDP) in the ADV7281A automatically detects PAL, NTSC, and SECAM standards in the form of composite, S-Video (Y/C), and component. The analog video is converted into a 4:2:2 component video data stream that is output via a MIPI CSI-2 transmitter (Tx) interface, hereafter referred to as MIPI Tx.

The ADV7281A offers short to battery (STB) diagnostic sense inputs and general-purpose outputs.

The ADV7281A is provided in a space-saving LFCSP surface-mount, RoHS compliant, package. The ADV7281A is rated over a −40°C to +105°C temperature range, making it ideal for automotive applications.

The ADV7281A must be configured in accordance with the I²C writes provided in the evaluation board script files.

Applications

• Advanced driver assistance
• Automotive infotainment
• DVRs for video security
• Media players
