Analog Devices ADUM1240 Product Info

The ADuM1240 / ADuM1241 / ADuM1245 / ADuM1246 are micropower, dual-channel digital isolators based on the Analog Devices, Inc., iCoupler^® technology. (Quad-channel products available). Combining high speed, complementary metal oxide semiconductor (CMOS) and monolithic air core transformer technologies, these isolation components provide outstanding performance characteristics superior to the alternatives, such as optocoupler devices.

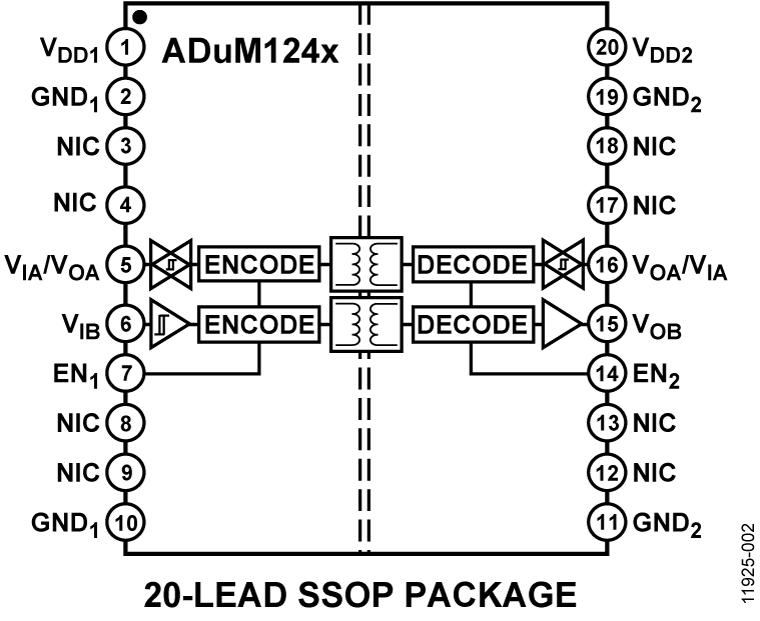

The 20-lead SSOP version of the ADuM1240 / ADuM1241 / ADuM1245 / ADuM1246 allows control of the internal refresh functions. As shown in Figure 3, in standard operating mode, when EN_x = 0 (internal refresh enabled), the current per channel is less than 10 μA.

When EN_x = 1 (internal refresh disabled), the current per channel drops to less than 1 μA.

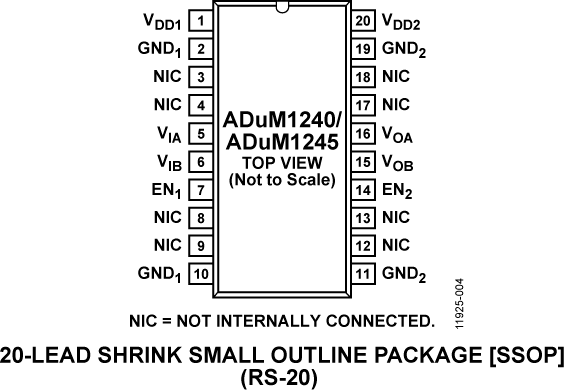

The ADuM1240 / ADuM1241 / ADuM1245 / ADuM1246 are packaged in either a 20-lead SSOP for 3.75 kV reinforced isolation or an 8-lead SOIC for 3 kV basic isolation. The devices meet regulatory requirements, such as UL and CSA standards.

In addition to the space saving package options, the ADuM1240 / ADuM1241 / ADuM1245 / ADuM1246 operate with supplies as low as 2.25 V. All models provide low, pulse width distortion at <8 ns. In addition, every model has an input glitch filter to protect against extraneous noise disturbances.&

Product Highlights

1. Outstanding Power Performance.
   These 3 kV digital isolators operate with 2.5 V supplies.
2. Distortion and Noise Protection.
   Low pulse width distortion (< 8 ns for A grade models) and an input glitch filter for extraneous noise disturbance protection.
