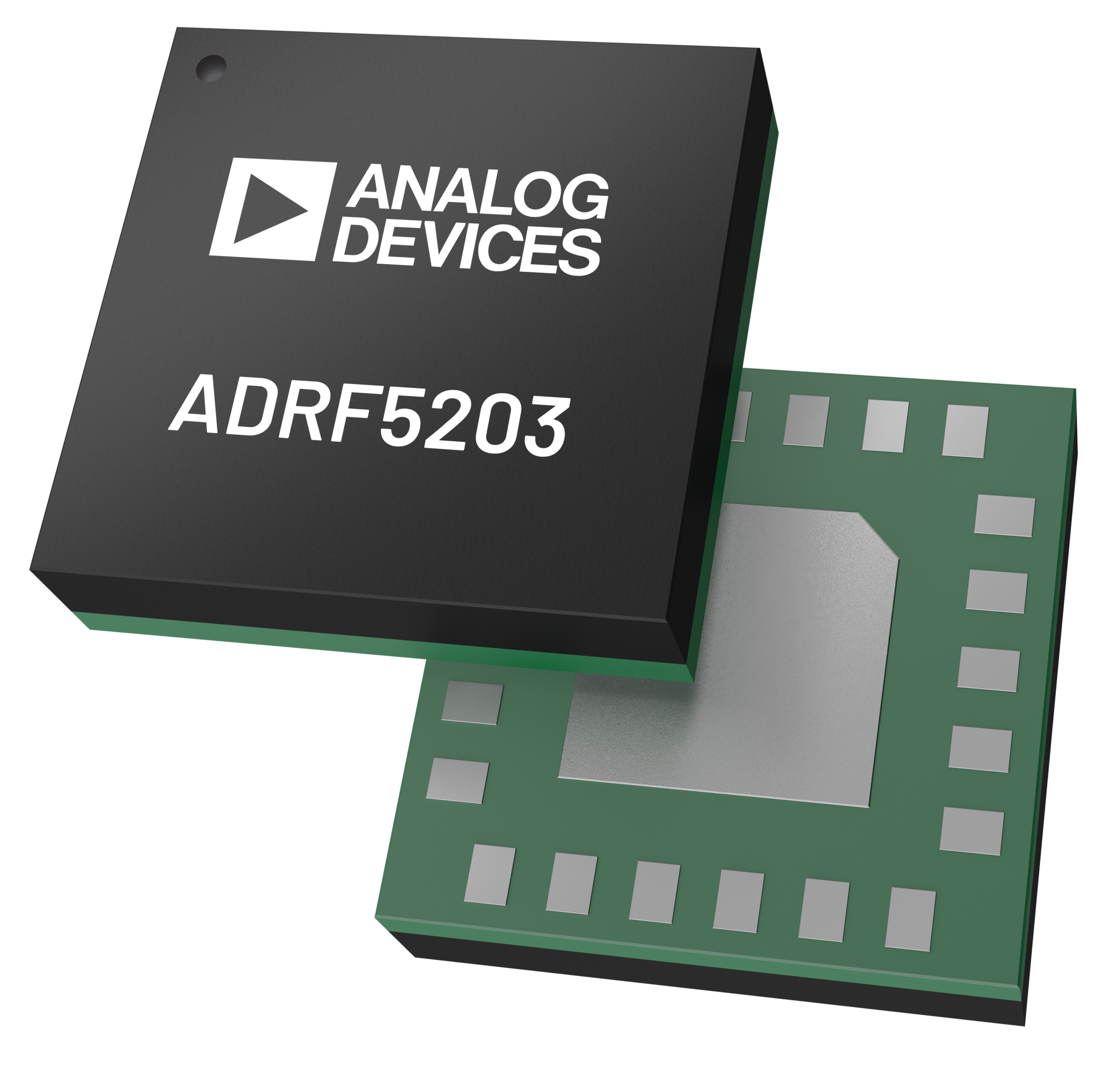

ADRF5203

PRE-RELEASE

DC to 12 GHz, Differential, Nonreflective, Silicon SPDT Switch

Analog Devices ADRF5203 Product Info

10 February 2026 6

Features

Frequency range: DC to 12 GHz
DC voltage range: ±8 V
On resistance (R_ON): <2.5 Ω
Fully differential 100 Ω design
Low insertion loss
- <0.8 dB at 8 GHz
- <1 dB at 12 GHz
High isolation
- >45 dB at 8 GHz
- >38 dB at 12 GHz
High input linearity
- P0.1dB: 31 dBm typical
- P1dB: 32 dBm typical
- IP3: 55 dBm typical

High power handling
- 31 dBm through path
- 24 dBm terminated path
RF switching time: 1.5 μs
All off state control
Termination control
- 100 Ω differential or high-Z (reflective)
22 terminal, 3 mm × 3 mm, RoHS-compliant, land grid array (LGA) package

Part details & applications

The ADRF5203 is a silicon, differential, single-pole double-throw (SPDT) switch. The ADRF5203 operates from DC to 12 GHz with an insertion loss of better than 1 dB and an isolation higher than 38 dB. The device has a DC voltage input range of ±8 V and RF input power handling of differential 31 dBm for through paths and 24 dBm for terminated paths.

The ADRF5203 operates with dual-supply voltages of ±12 V. The ADRF5203 employs complementary metal-oxide semiconductor (CMOS)- and low voltage transistor logic (LVTTL)-compatible controls. The ADRF5203 has an enable control to feature all off state function. The High-Z control selects the termination on the unselected RF channel.

The ADRF5203 comes in a 22-terminal, 3 mm × 3 mm, RoHS compliant, land grid array (LGA) package and can operate from −40°C to +105°C.

APPLICATIONS

Test instrumentation
