ADRF5046

RECOMMENDED FOR NEW DESIGNS

Silicon SP4T Switch, Reflective, 100 MHz to 44 GHz

Analog Devices ADRF5046 Product Info

10 February 2026 6

Features

Ultrawideband frequency range: 100 MHz to 44 GHz
Reflective design
Low insertion loss:
- 1.5 dB at 18 GHz
- 2.5 dB at 40 GHz
- 3.0 dB at 44 GHz
High isolation:
- 46 dB at 18 GHz
- 33 dB at 40 GHz
- 31 dB at 44 GHz

High input linearity:
- P0.1dB: 27.5 dBm typical
- IP3: 50 dBm typical
High RF input power handling
- Through path: 27 dBm
- Hot switching (RFC): 27 dBm
No low frequency spurious
0.1 dB RF settling time: 50 ns

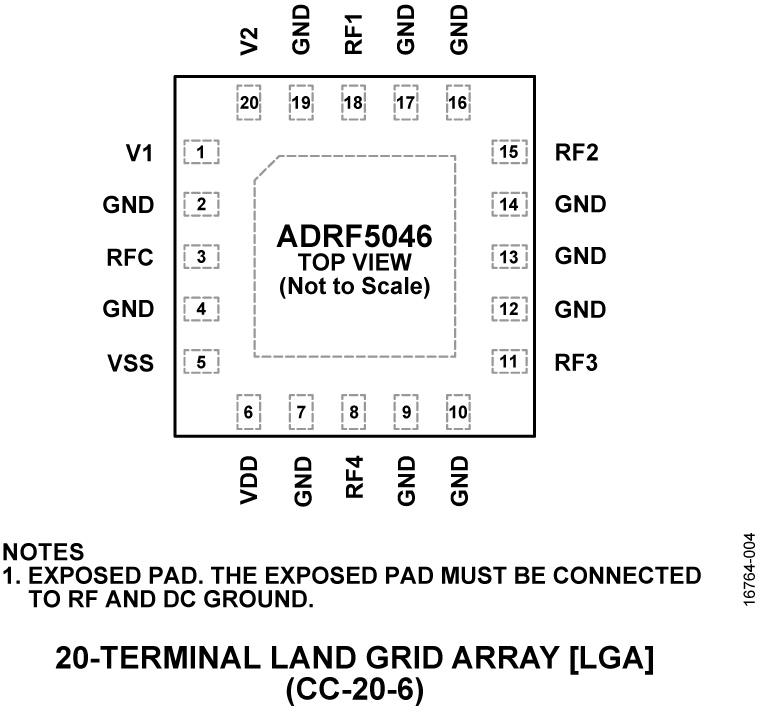

20-terminal, 3 mm × 3 mm, RoHS-compliant, LGA package

Part details & applications

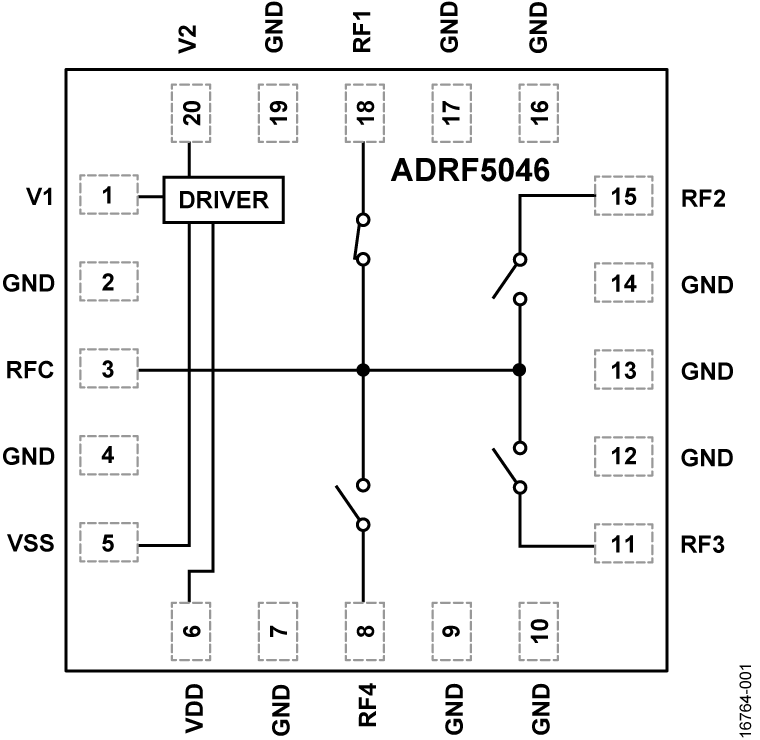

The ADRF5046 is a reflective, single-pole four-throw (SP4T) switch manufactured in the silicon process.

The ADRF5046 operates from 100 MHz to 44 GHz with insertion loss of lower than 3.0 dB and isolation of higher than 31 dB. The device has a radio frequency (RF) input power handling capability of 27 dBm for both the through path and hot switching at RFC pin.

The ADRF5046 draws a low current of 3 μA on the positive supply of +3.3 V, and −110 μA on the negative supply of −3.3 V. The device provides complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-transistor logic (LVTTL)-compatible controls.

The ADRF5046 comes in a 20-terminal, 3 mm × 3 mm, RoHS-compliant, land grid array (LGA) package and can operate from −40°C to +105°C.

Applications

Industrial Scanner
Test and instrumentation
Cellular Infrastructure – mmWave 5G
Military radios, radars, electronic counter measures (ECMs)
Microwave radios and very small aperture terminals (VSATs)
