ADPL76030

RECOMMENDED FOR NEW DESIGNS

55 V, 1.4 MHz Synchronous 4-Switch Buck-Boost Controller with Spread Spectrum

Analog Devices ADPL76030 Product Info

10 February 2026 5

Features

4-Switch Single Inductor Architecture Allows V_IN
Above, Below, or Equal to V_OUT
Up to 95% Efficiency at 1.4 MHz
Proprietary Peak-Buck, Peak-Boost Current-Mode
Wide V_IN Range: 4 V to 55 V
±2% Output Voltage Accuracy: 1 V ≤ V_OUT ≤ 55 V
±3% Input or Output Current Accuracy with Monitor

Spread Spectrum Frequency Modulation for Low EMI
No Top MOSFET Refresh Noise in Buck or Boost
Adjustable and Synchronizable: 600 kHz to 1.4 MHz
V_OUT Disconnected from VIN During Shutdown

Part details & applications

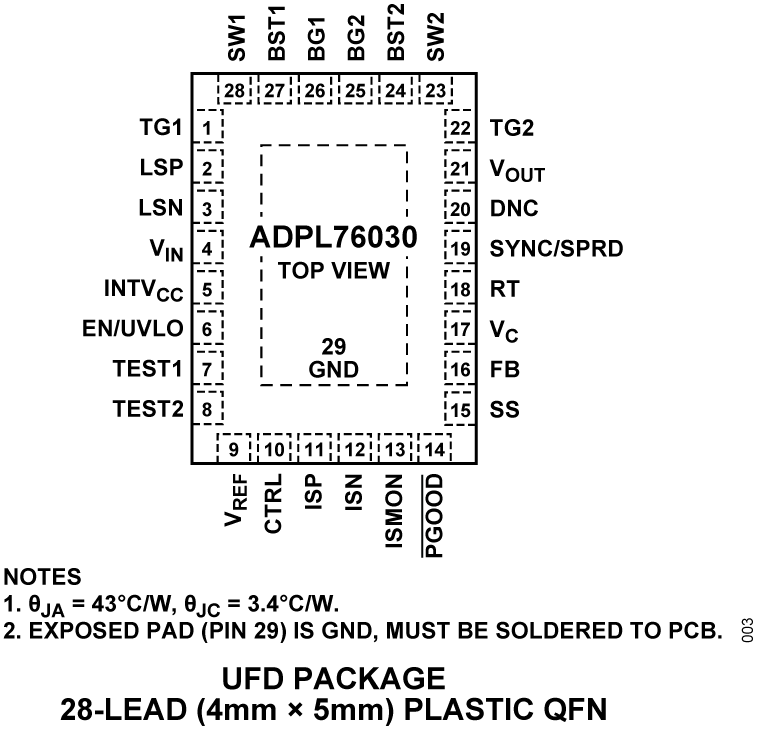

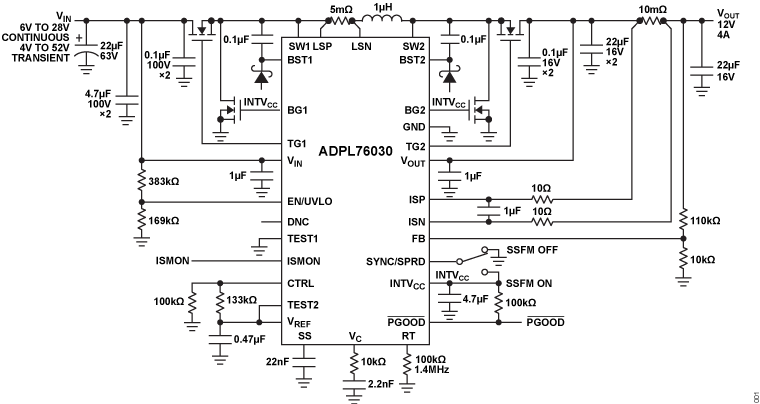

The ADPL76030 is a synchronous 4-switch buck-boost DC/DC controller that regulates output voltage, and input or output current from an input voltage above, below, or equal to the output voltage. The proprietary peak-buck, peak-boost current-mode control scheme allows adjustable and synchronizable 600 kHz to 1.4 MHz fixed frequency operation, or internal 25% triangle spread spectrum frequency modulation for low EMI. With a 4 V to 55 V input voltage range, 0 V to 55 V output voltage capability, and seamless low noise transitions between operation regions, the ADPL76030 is ideal for voltage regulators, and battery and supercapacitor charger applications in industrial, telecom, and even battery-powered systems.

The ADPL76030 provides input or output current monitor and power good flag. Fault protection is also provided to detect output short-circuit condition, during which the ADPL76030 retries, latches off, or keeps running.

All registered trademarks and trademarks are the property of their respective owners.

Applications

Industrial, Telecom Systems
High Frequency, Battery-Powered System
