ADMV8513

RECOMMENDED FOR NEW DESIGNS

520 MHz to 1300 MHz, Digitally Tunable, Band-Pass Filter

Analog Devices ADMV8513 Product Info

10 February 2026 5

Features

Digitally tunable, octave, band-pass tuning
3 dB bandwidth: 8.5% ± 2%
Rejection (20 dB): 17% away from f_CENTER

Single chip replacement for discrete filter banks

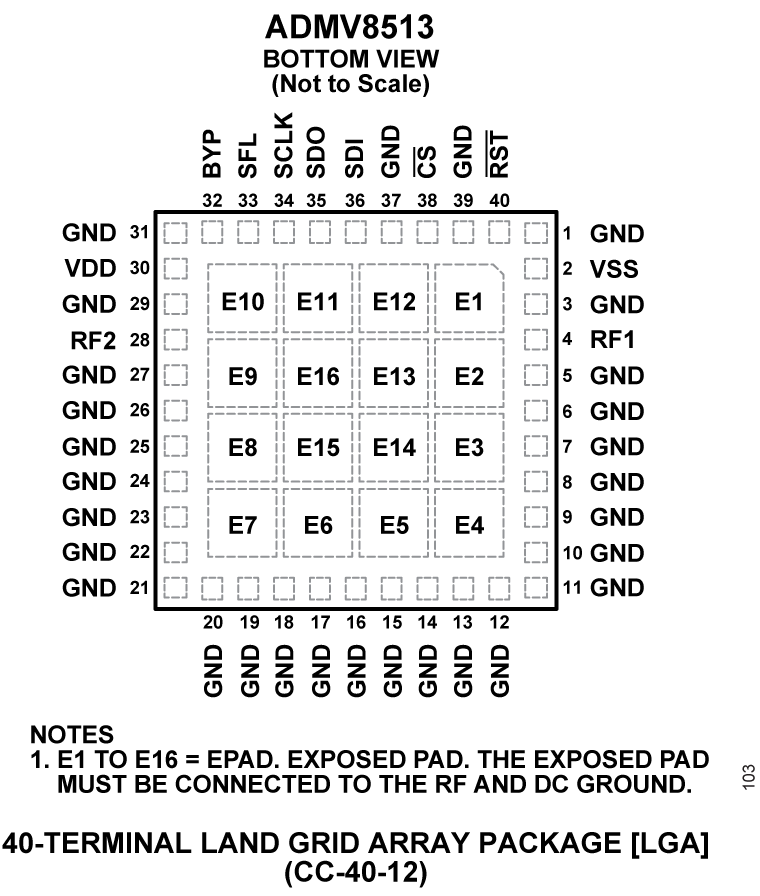

Compact 10.00 mm × 10.00 mm × 2.10 mm LGA package

Part details & applications

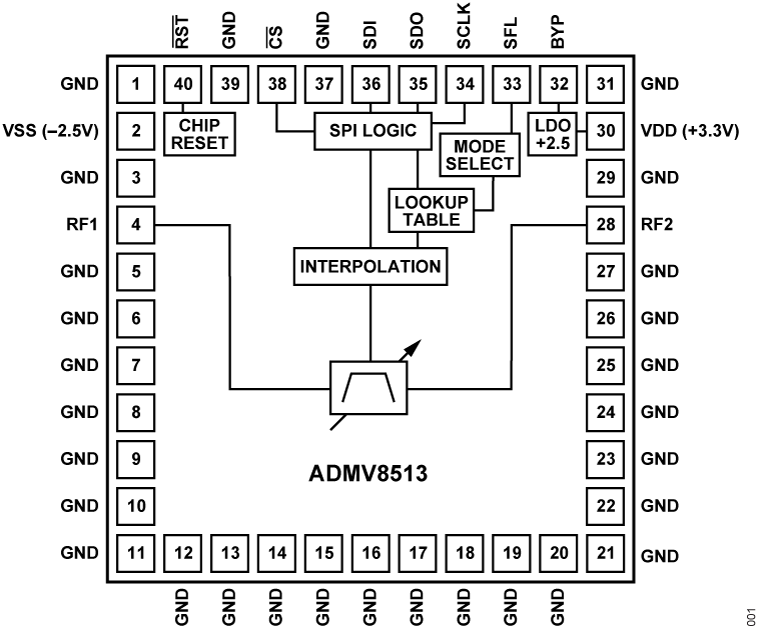

The ADMV8513¹ is an RF band-pass filter that features a digitally selectable frequency of operation. The filter center frequency (f_CENTER) can be adjusted from 520 MHz to 1300 MHz, using an 8-bit value (256 states) that incorporates a patented calibration technique.

The typical 3 dB bandwidth is 8.5% with narrow-band and wide-band options and adjustability is ±2%. Insertion loss is typically 5.5 dB, and the 20 dB rejection is 17% away from f_CENTER, which is ideally suited for minimizing system interferers.

This tunable filter can be used as a smaller alternative to large switched filter banks and discrete component-based tunable filters, and this device provides a dynamically adjustable solution in advanced communications applications.

Applications

Land mobile radios
Test and measurement equipment
Military radars and electronic warfare and electronic countermeasures
Satellite communications
Industrial and medical equipment
