ADMV8505

RECOMMENDED FOR NEW DESIGNS

225 MHz to 520 MHz, Digitally Tunable, Band-Pass Filter

Analog Devices ADMV8505 Product Info

10 February 2026 5

Features

Digitally tunable, octave, band-pass tuning
3 dB bandwidth: 9% ± 2%
Rejection (20 dB): 19% away from f_CENTER
Single chip replacement for discrete filter banks

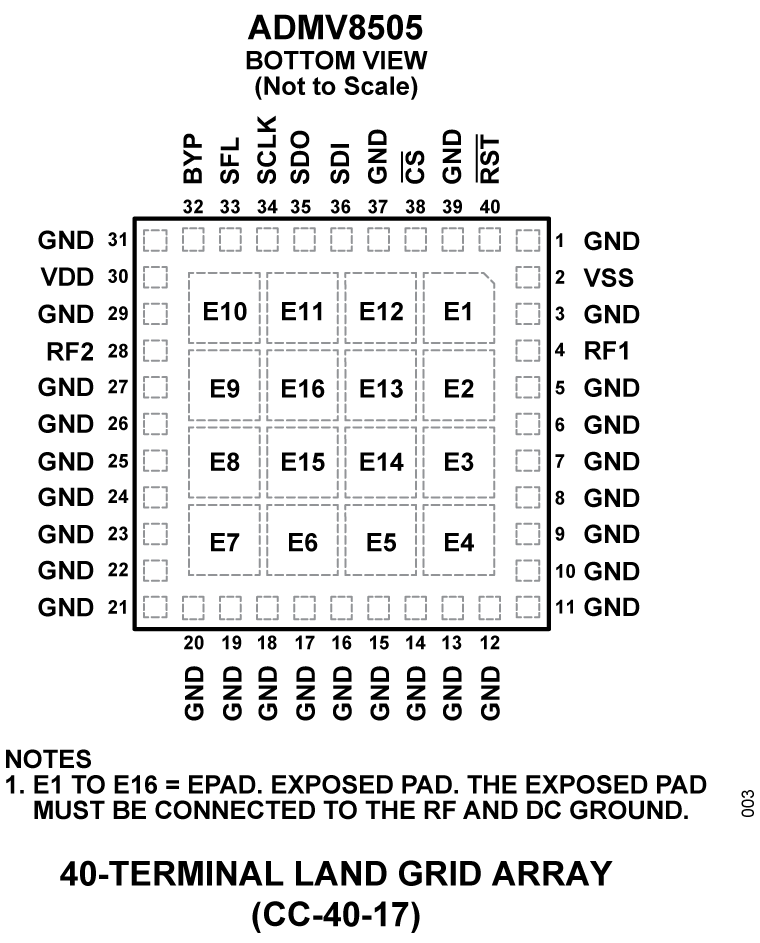

Compact 10 mm × 10 mm LGA package

Part details & applications

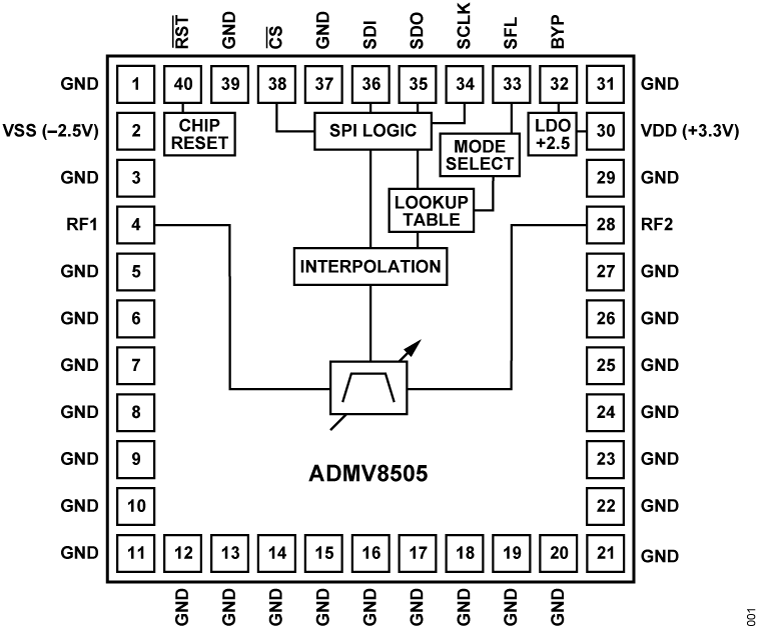

The ADMV8505¹ is an RF band-pass filter that features a digitally selectable frequency of operation. The filter center frequency (f_CENTER) can be adjusted from 225 MHz to 520 MHz using an 8-bit value (256 states) that incorporates a patented calibration technique.

The typical 3 dB bandwidth is 9%, and adjustability is ±2%. Insertion loss is typically 4.5 dB, and the 20 dB rejection is 19% away from the f_CENTER, which is ideally suited for minimizing system interferers.

The ADMV8505 tunable filter can be used as a smaller alternative to large switched filter banks and discrete component-based tunable filters, providing a dynamically adjustable solution in advanced communications applications.

Applications

Land mobile radios
Test and measurement equipment
Military radars and electronic warfare and electronic countermeasures
Satellite communications
Industrial and medical equipment
