ADM1810

PRODUCTION

Microprocessor Supervisory in SOT-23 with Active High and Low Push-Pull Output

Analog Devices ADM1810 Product Info

10 February 2026 6

Features

Reliable Low Cost Voltage Monitor with Reset Output
Suitable for Monitoring 2.5 V, 3 V,
3.3 V, and 5 V Power Supply Voltages
Reset Threshold Levels: 4.62 V, 4.35 V, 3.06 V, 2.88 V, 2.55 V, 2.31 V, and
2.18 V (Typ)
Initialize Microprocessor Systems with Added Safety

Open-Drain Output Choices (ADM1811, ADM1813, ADM1816, and ADM1818)
Can Be Used with a Manual Push-Button to Generate a Reset (ADM1813, ADM1818)

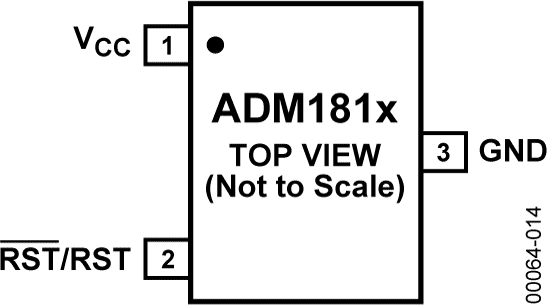

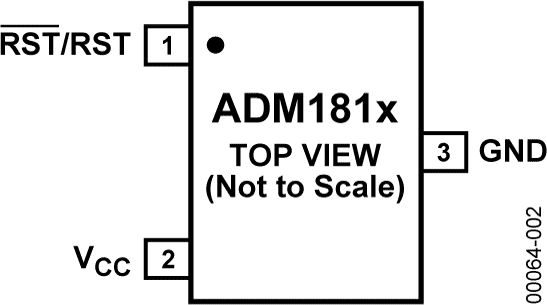

Available in 3-Lead SOT-23 and SC70 Packages
Active High and Low Push-Pull Output Choices (ADM1810, ADM1812, ADM1815, and ADM1817)

Part details & applications

The ADM181x range of voltage monitoring circuits can be used in any application where an electronic system needs to be reset when a voltage increases above or below a predetermined value.

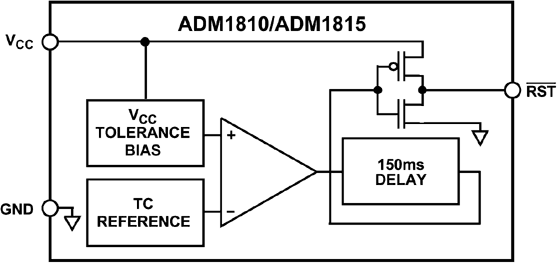

Because of the “reset delay time” incorporated into the ADM181x series, these devices can provide a safe startup for electronic systems. Before a system initializes, the power supply must stabi-lize. Using the ADM181x series ensures that there are typically 150 ms for the power supply to stabilize before the system is reset and safe system initialization begins.

The ADM181x series of microprocessor reset circuits are available in low cost, space-saving SOT-23 packages.
