ADM1062

PRODUCTION

Super Sequencer® with Margining Control and Temperature Monitoring

Analog Devices ADM1062 Product Info

10 February 2026 7

Features

Complete supervisory and sequencing solution for up to 10 supplies
10 supply fault detectors enable supervision of supplies to:
<0.5% accuracy at all voltages at 25°C
<1.0 % accuracy across all voltages and temperatures
5 selectable input attenuators allow supervision of:
Supplies up to 14.4 V on VH
Supplies up to 6 V on VP1 to VP4 (VPn)
10 programmable output drivers (PDO1 to PDO10):
Open collector with external pull-up
Push/pull output, driven to VDDCAP or VPx
Open collector with weak pull-up to VDDCAP or VPx
Internally charge-pumped high drive for use with external N-FET (PDO1 to PDO6 only)
Sequencing engine (SE) implements state machine control of PDO outputs
State changes conditional on input events
Enables complex control of boards
Power-up and power-down sequence control
Fault event handling
Interrupt generation on warnings
Watchdog function can be integrated in SE
Program software control of sequencing
through SMBus

5 dual-function inputs, VX1 to VX5 (VXn)
High impedance input to supply fault detector with thresholds between 0.573 V and 1.375 V
General-purpose logic input
Complete voltage margining solution for 6 voltage rails
6 voltage output, 8-bit DACs (0.300 V to 1.551 V) allow voltage adjustment via dc-to-dc converter trim/feedback node
12-bit ADC for readback of all supervised voltages
Internal and external temperature sensors
Reference input (REFIN) has 2 input options
Driven directly from 2.048 V (±0.25%) REFOUT pin
More accurate external reference for improved ADC performance
Device powered b

Part details & applications

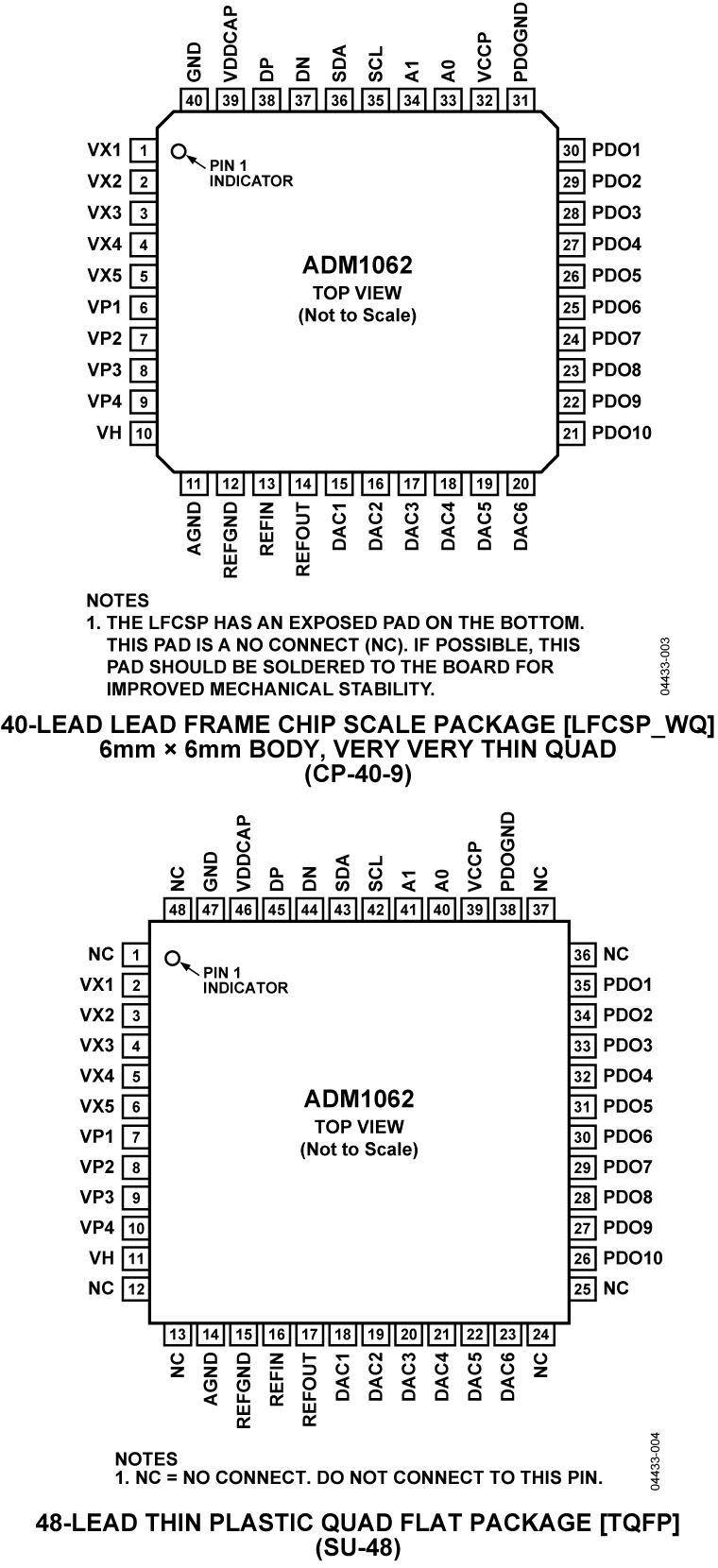

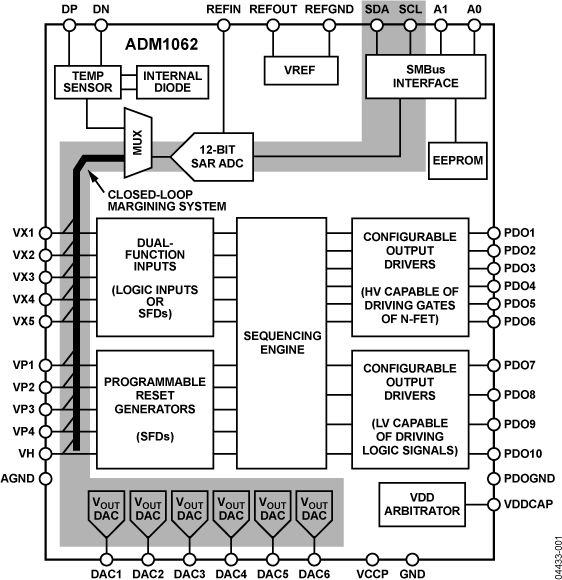

The ADM1062 Super Sequencer^® is a configurable supervisory/sequencing device that offers a single-chip solution for supply monitoring and sequencing in multiple-supply systems. In addition to these functions, the ADM1062 integrates a 12-bit ADC and six 8-bit voltage output DACs. These circuits can be used to implement a closed-loop margining system that enables supply adjustment by altering either the feedback node or the reference of a dc-to-dc converter using the DAC outputs.

For more information about the ADM1062 register map, refer to the AN-698 Application Note.

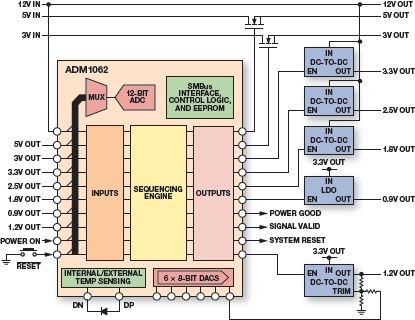

APPLICATIONS

Central office systems
Servers/routers
Multivoltage system line cards
DSP/FPGA supply sequencing
In-circuit testing of margined supplies
