ADLT2852S

RECOMMENDED FOR NEW DESIGNS

3.3 V, 20 Mbps RS485/RS422 Transceiver

Analog Devices ADLT2852S Product Info

10 February 2026 5

Features

3.3 V supply voltage
20 Mbps maximum data rate
No damage or latch-up up to ±15 kV HBM
Guaranteed fail-safe receiver operation over the entire common-mode range
Current-limited drivers and thermal shutdown
Power-up and power-down glitch free driver outputs
Low operating current: 370 μA typical in receive mode
Compatible with TIA/EIA-485-A specifications

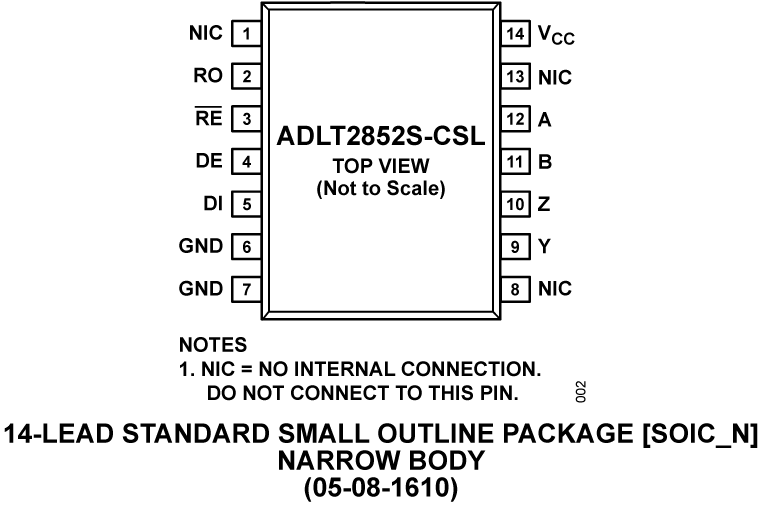

Available in 14-lead SOIC_N package

COMMERCIAL SPACE FEATURES

Supports aerospace applications
Wafer diffusion lot traceability
Radiation lot acceptance testing: TID
Radiation benchmark
- Total Ionizing Dose (TID)
- Single Event Effects (SEE)

Part details & applications

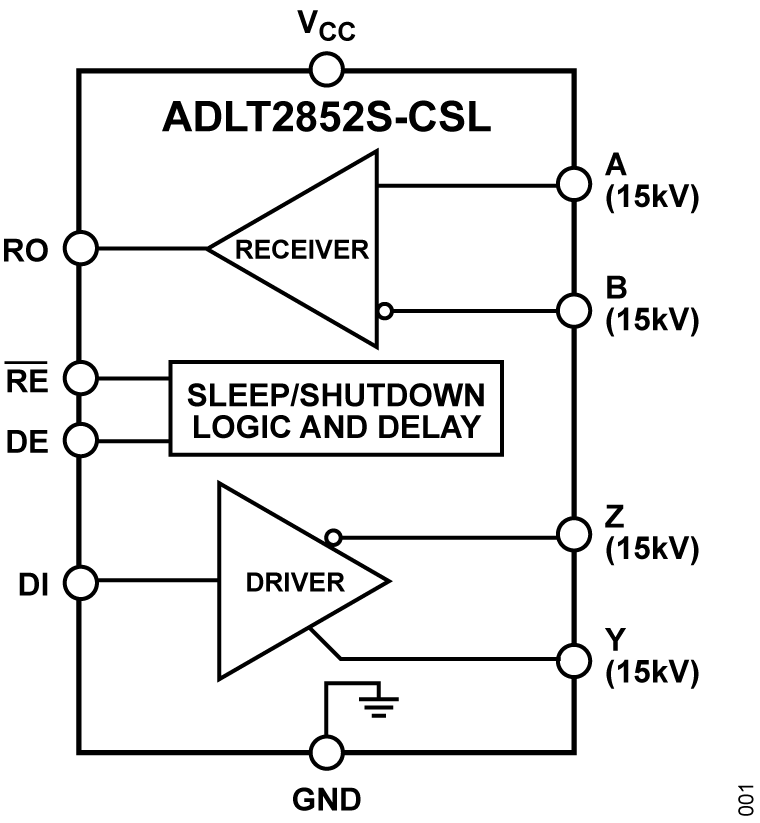

The ADLT2852S-CSL is a low power, 20 Mbps RS485/RS422 transceiver operating on a 3.3 V supply. The receiver has a fail-safe feature that guarantees a high output state under conditions of floating or shorted inputs.

The driver maintains a high output impedance over the entire common-mode range when disabled or when the supply is removed. Excessive power dissipation caused by bus contention or a fault is prevented by current limiting all outputs and by thermal shutdown. Enhanced electrostatic discharge (ESD) protection allows this device to withstand up to ±15 kV human body model (HBM) on the transceiver interface pins without latch-up or damage.

The ADLT2852S-CSL is specified over the −55°C to +125°C temperature range. Additional application and technical information can be found in the Commercial Space Products Program brochure and the LTC2852 data sheet.

APPLICATIONS

Low Earth orbit (LEO) space payloads
Low power RS485/RS422 transceiver
Level translator
Backplane transceiver
