ADH849S

PRODUCTION

Aerospace, GaAs, pHEMT, MMIC, High Isolation SPDT Non-Reflective Switch, DC to 6 GHz (Die and LH5)

Analog Devices ADH849S Product Info

10 February 2026 4

Features

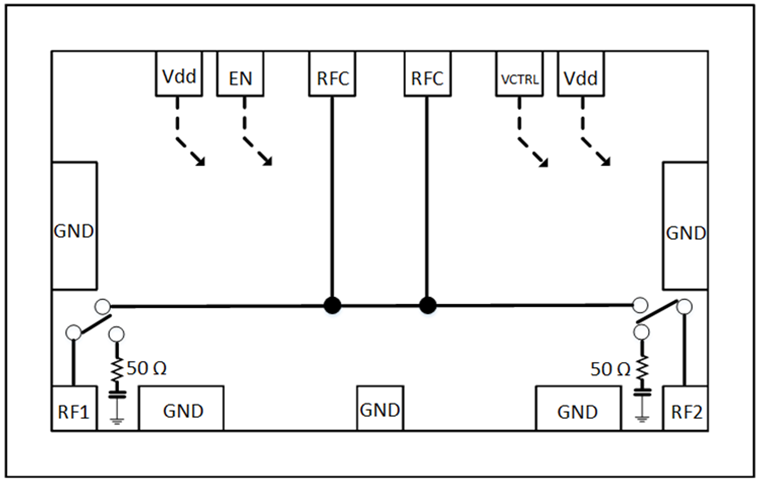

ADH849S (Die)

Frequency of Operation: DC to 6 GHz

High Isolation: up to 60 dB

High Input IP3: +52 dBm Typ.

Insertion Loss:

1.1 dB Typ. @ 4 GHz
1.5 dB Typ. @ 6 GHz

Non-Reflective Design

“All Off” State

Screened in accordance with MIL-PRF-38534, Class K

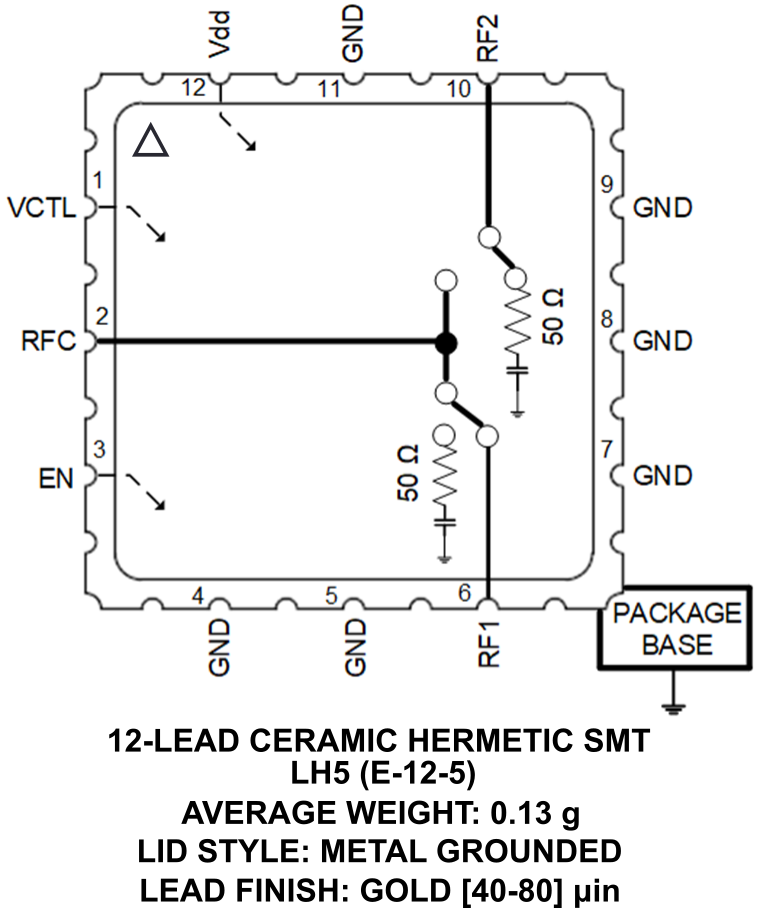

ADH849S (LH5 Package)

Frequency of Operation: DC to 6 GHz

High Isolation: up to 60 dB

High Input IP3: +52 dBm Typ.

Insertion Loss:

0.75 dB @ 1.3 GHz Typ.
1.1 dB @ 4 GHz Typ.

Non-Reflective Design

“All Off” State.

12-Lead Hermetic SMT Package

Screened in accordance with MIL-PRF-38535, Class Level S

Part details & applications

ADH849S (Die and LH5)

TheADH849S is a GaAs pHEMT high isolation non-reflective SPDT switch available in both Die and 12-Lead hermetic SMT package. The switch provided up to 60 dB isolation, low 1.1 dB insertion loss @ 4 GHz and +52 dBm input IP3. Power handling is excellent up through the 5 GHz - 6 GHz frequency band with the switch offering an Input P1dB compression point of +31 dBm. On-chip circuitry allows a single positive voltage control of 0/+3V or 0/+5V at very low DC currents. An enable input (EN) set to logic high will put the switch in an "all off" state.

Applications

Communications
Instrumentation
Military & Space
