ADH747S

RECOMMENDED FOR NEW DESIGNS

Aerospace, Fast Rise Time D-Type Flip-Flop with Programmable Output Voltage & Positive Supply, 14 Gbps

Analog Devices ADH747S Product Info

10 February 2026 7

Features

Differential & Single-Ended Operation
Low Power Consumption: 264 mW typ.
Programmable Differential

Output Voltage Swing: 700 mV – 1300 mV

Propagation Delay: 105 ps

Fast Rise and Fall Times: 22/20 ps
Single Supply: +3.3V Typ.

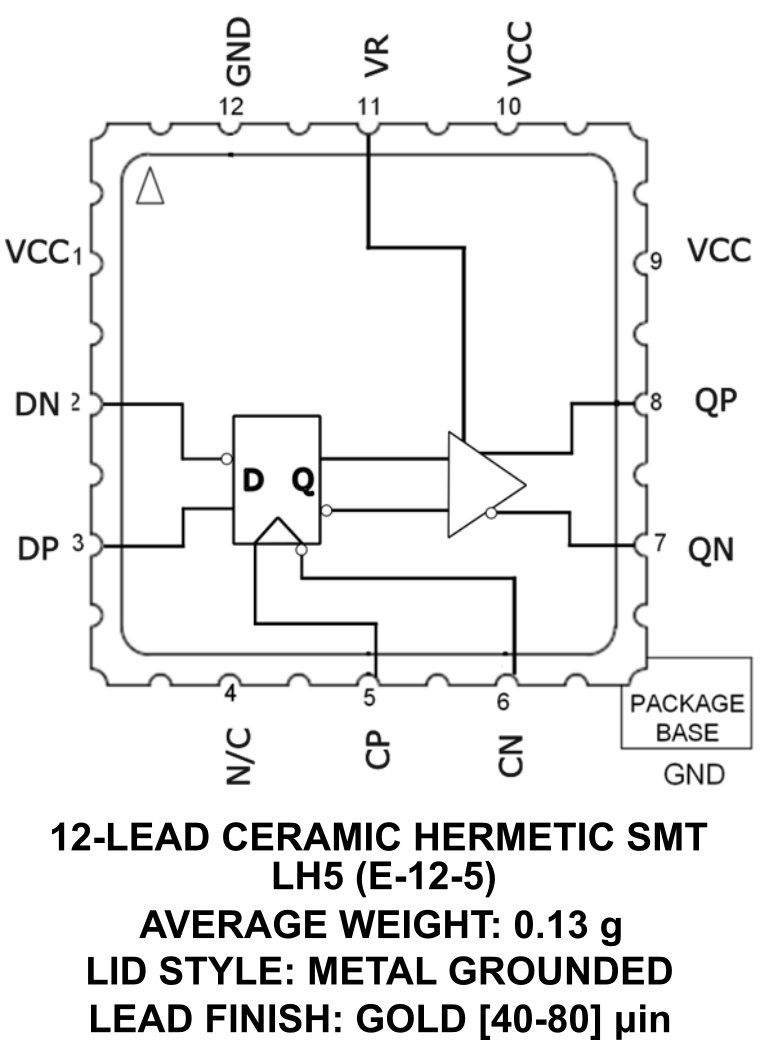

12 -Lead Hermetic SMT package
Screened in accordance with MIL-PRF-38535, Class Level B

Part details & applications

The ADH747S is a D-Type Flip-Flop designed to support data transmission rates of up to 14 Gbps, and clock frequencies as high as 14 GHz. During normal operation, data is transferred to the outputs on the positive edge of the clock. Reversing the clock inputs allows for negative-edge triggered applications. The ADH747S also features an output level control pin, VR, which allows for loss compensation or for signal level optimization.

All input and output signals to the ADH747S are terminated with 50 Ω to V_CC on-chip and may be either AC or DC coupled. Inputs and outputs can be connected directly to a 50 Ω to V_CCterminated system, while DC blocking capacitors may be used if the terminating system is 50 Ω to ground. The ADH747S operates from a single +3.3V DC supply and is available in a 12 Lead hermetic SMT package.

Applications

RF Applications
Serial Data Transmission up to 14 Gbps
Digital Logic Systems up to 14 GHz
Military & Space
