ADF7012

NOT RECOMMENDED FOR NEW DESIGNS

Multichannel ISM Band FSK/GFSK/OOK/GOOK/ASK Transmitter

Analog Devices ADF7012 Product Info

10 February 2026 5

Features

Single-chip, low power UHF transmitter
75 MHz to 1 GHz frequency operation
Multichannel operation using fractional-N PLL
2.3 V to 3.6 V operation
On-board regulator
Programmable output power
−16 dBm to +14 dBm, 0.4 dB steps

Data rates: dc to 179.2 kbps
Low current consumption
868 MHz, 10 dBm, 21 mA
433 MHz, 10 dBm, 17 mA
315 MHz, 0 dBm, 10 mA
Programmable low battery voltage indicator

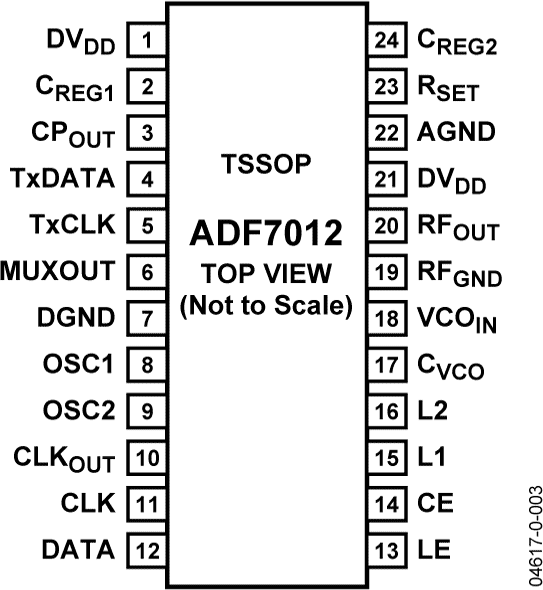

24-lead TSSOP

Part details & applications

The ADF7012 is a low power FSK/GFSK/OOK/GOOK/ASK UHF transmitter designed for short-range devices (SRDs). The output power, output channels, deviation frequency, and modulation type are programmable by using four, 32-bit registers.

The fractional-N PLL and VCO with external inductor enable the user to select any frequency in the 75 MHz to 1 GHz band. The fast lock times of the fractional-N PLL make the ADF7012 suitable in fast frequency hopping systems. The fine frequency deviations available and PLL phase noise performance facilitates narrow-band operation.

There are five selectable modulation schemes: binary frequency shift keying (FSK), Gaussian frequency shift keying (GFSK), binary on-off keying (OOK), Gaussian on-off keying (GOOK), and amplitude shift keying (ASK). In the compensation register, the output can be moved in <1 ppm steps so that indirect compensation for frequency error in the crystal reference can be made.

A simple 3-wire interface controls the registers. In power-down, the part has a typical quiescent current of <0.1 μA.

APPLICATIONS

Low cost wireless data transfer
Security systems
RF remote controls
Wireless metering
Secure keyless entry
