AD9986

RECOMMENDED FOR NEW DESIGNS

4T2R Direct RF Transmitter and Observation Receiver

Analog Devices AD9986 Product Info

10 February 2026 8

Features

Flexible reconfigurable radio common platform design
- Transmit/receive channel bandwidth up to 1.2 GHz/2.4 GHz (4T2R)
- RFDAC/RFADC RF frequency range up to 7.5 GHz
- On-chip PLL with multichip synchronization
  - External RFCLK input option
Versatile digital features
- Configurable digital up/down conversion (DDC and DUC)
  - 8 fine complex DUCs and 4 coarse complex DUCs
  - 8 fine complex DDCs and 4 coarse complex DDCs, 2 independent
  - 48-bit NCO per DUC/DDC
- Programmable 192-tap PFIR filter for receive equalization
  - Supports 4 different profile settings loaded via GPIO
- Receive AGC support
  - Fast detect with low latency for fast AGC control
  - Signal monitor for slow AGC control
  - Dedicated AGC support pins
- Transmit DPD support
  - Programmable delay and gain per transmit data path
  - Coarse DDC delay adjust for DPD observation path

Auxiliary features
- Power amplifier downstream protection circuitry
- On-chip temperature monitoring unit
- Programmable GPIO pins supporting different user configurations
- ADC clock driver with selectable divide ratios
- TDD power savings option and sharing ADCs
SERDES JESD204B/JESD204C interface, 16 lanes up to 24.75 Gbps
- 8 lanes per each

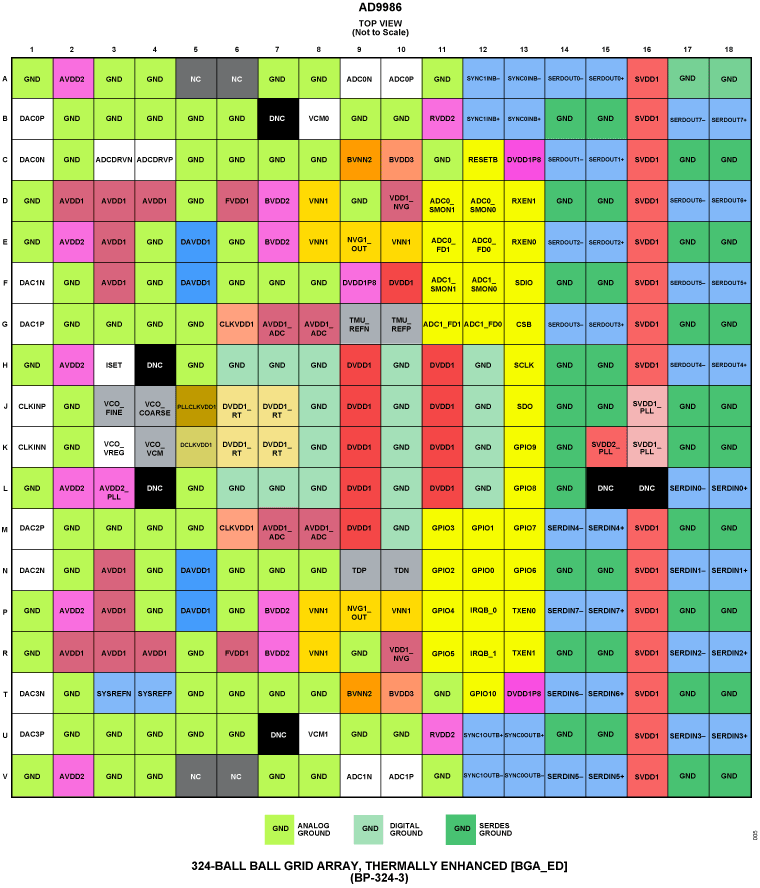

Part details & applications

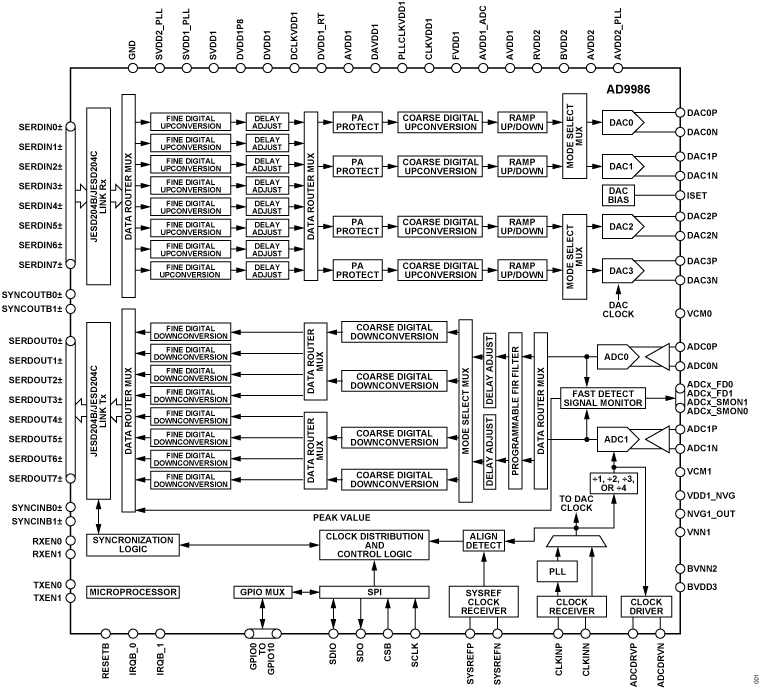

The AD9986 is a highly integrated device with a 16-bit, 12 GSPS maximum sample rate RF DAC core, and a 12-bit, 6 GSPS rate RF ADC core. The AD9986 supports four transmitter channels and two receiver channels with four transmitter, two receiver (4T2R) configuration. The AD9986 is well suited for 2-antenna and 4-antenna transmitter applications requiring a wide bandwidth observation receiver path for the digital predistortion. The AD9986 supports up to a 6 GSPS complex transmit and receive data rate in single channel mode. The maximum radio channel bandwidth supported is 1.2 GHz and 2.4 GHz for the transmit and receive paths, respectively (4T2R). The AD9986 features a 16 lane, 24.75 Gbps JESD204C or 15.5 Gbps JESD204B serial data port, an on-chip clock multiplier, and digital signal processing capability targeted at multiband, direct-to-RF radio applications.

APPLICATIONS

Wireless communications infrastructure
W-CDMA, LTE, LTE-A, Massive-MIMO
Microwave point-to-point, E-band, and 5G mm Wave
Broadband communications systems
DOCSIS 3.1 and 4.0 CMTS
Communications test and measurement system
