AD9648

RECOMMENDED FOR NEW DESIGNS

14-Bit, 125 MSPS/105 MSPS, 1.8 V Dual Analog-to-Digital Converter

Analog Devices AD9648 Product Info

10 February 2026 5

Features

  • 1.8 V analog supply operation
  • 1.8 V CMOS or LVDS outputs
  • SNR = 74.5 dBFS at 70 MHz
  • SFDR = 91 dBc at 70 MHz
  • Low power: 106 mW/channel at 125 MSPS
  • Differential analog input with 650 MHz bandwidth
  • IF sampling frequencies to 200 MHz
  • See data sheet for additional features

    AD9648-EP supports defense and aerospace applications (AQEC standard)

    • Download AD9648-EP data sheet (pdf)
    • Military temperature range: −55°C to +125°C
    • Controlled manufacturing baseline
    • Qualification data available on request
    • V62/16606 DSCC Drawing Number

Part details & applications

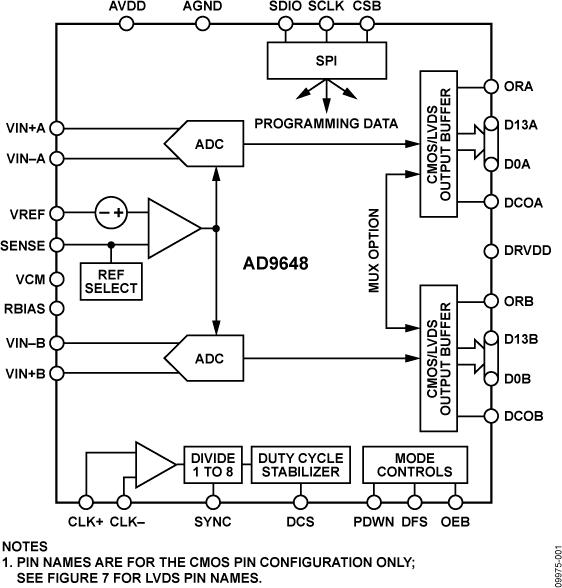

The AD9648 is a monolithic, dual-channel, 1.8 V supply, 14-bit, 105 MSPS/125 MSPS analog-to-digital converter (ADC). It features a high performance sample-and-hold circuit and on-chip voltage reference. The product uses multistage differential pipeline architecture with output error correction logic to provide 14-bit accuracy at 125 MSPS data rates and to guarantee no missing codes over the full operating temperature range.

The ADC contains several features designed to maximize flexibility and minimize system cost, such as programmable clock and data alignment and programmable digital test pattern generation. The available digital test patterns include built-in deterministic and pseudorandom patterns, along with custom user-defined test patterns entered via the serial port interface (SPI).

A differential clock input controls all internal conversion cycles. An optional duty cycle stabilizer (DCS) compensates for wide variations in the clock duty cycle while maintaining excellent overall ADC performance.

The digital output data is presented in offset binary, Gray code, or twos complement format. A data output clock (DCO) is provided for each ADC channel to ensure proper latch timing with receiving logic. Output logic levels of 1.8 V CMOS or LVDS are supported. Output data can also be multiplexed onto a single output bus.

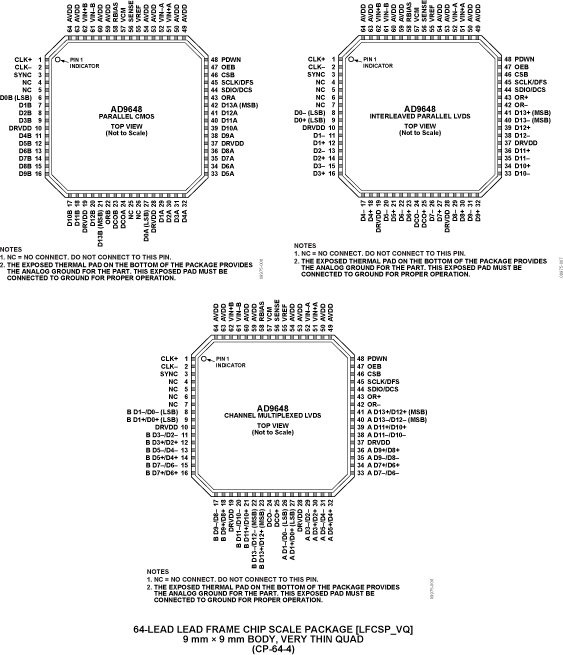

The AD9648 is available in a 64-lead RoHS compliant LFCSP and is specified over the industrial temperature range (−40°C to +85°C).

Applications

  • Communications
  • Diversity radio systems
  • Multimode digital receivers
    GSM, EDGE, W-CDMA, LTE,
    CDMA2000, WiMAX, TD-SCDMA
  • I/Q demodulation systems
  • Smart antenna systems
  • Broadband data applications
  • Battery-powered instruments
  • Hand held scope meters
  • Portable medical imaging
