AD9547

RECOMMENDED FOR NEW DESIGNS

Dual/Quad Input Network Clock Generator/Synchronizer

Analog Devices AD9547 Product Info

10 February 2026 4

Features

Supports Stratum 2 stability in holdover mode
Supports reference switchover with phase build-out
Supports hitless reference switchover
Automatic/manual holdover and reference switchover
2 pairs of reference input pins, with each pair configurable as a single differential input or as 2 independent single-ended inputs
Input reference frequencies from 1 kHz to 750 MHz
Reference validation and frequency monitoring (1 ppm)
Programmable input reference switchover priority
30-bit programmable input reference divider

2 pairs of clock output pins, with each pair configurable as a single differential LVDS/LVPECL output or as 2 single-ended CMOS outputs
Output frequencies up to 450 MHz
20-bit integer and 10-bit fractional programmable feedback divider
Programmable digital loop filter covering loop bandwidths from 0.001 Hz to 100 kHz
Optional low noise LC-VCO system clock multiplier
Optional crystal resonator for system clock input
On-chip EEPROM to store multiple power-up profiles
Software controlled power-down

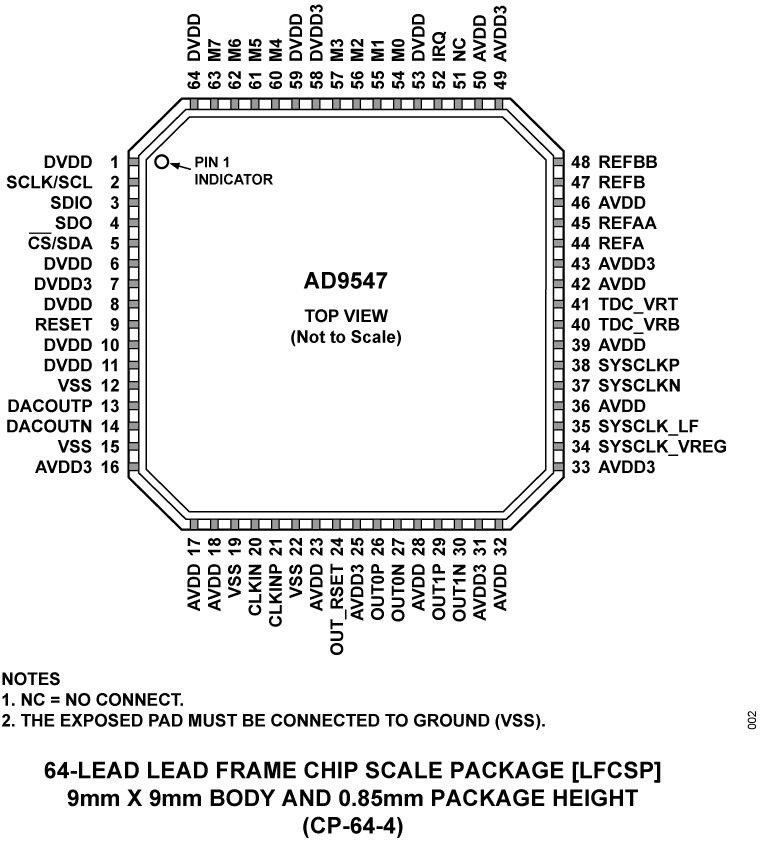

64-lead LFCSP package

Part details & applications

The AD9547 provides synchronization for many systems, including synchronous optical networks (SONET/SDH). The AD9547 generates an output clock that is synchronized to one of two differential or four single-ended external input references. The digital PLL allows for reduction of input time jitter or phase noise associated with the external references. The AD9547 continuously generates a clean (low jitter), valid output clock, even when all references fail, by means of digitally controlled loop and holdover circuitry.

The AD9547 operates over an industrial temperature range of −40°C to +85°C.

Applications

Network synchronization

Cleanup of reference clock jitter

SONET/SDH clocks up to OC-192, including FEC

Stratum 2 holdover, jitter cleanup, and phase transient control

Stratum 3E and Stratum 3 reference clocks

Wireless base stations, controllers

Cable infrastructure

Data communications
