Analog Devices AD9544 Product Info

• Dual DPLL synchronizes 1 Hz to 750 MHz physical layer clocks providing frequency translation with jitter cleaning of noisy references
• Complies with ITU-T G.8262 and Telcordia GR-253
• Supports Telcordia GR-1244, ITU-T G.812, G.813, G.823, G.824, and G.825
• Continuous frequency monitoring and reference validation for frequency deviation as low as 50 ppb
• Both DPLLs feature a 24-bit fractional divider with 24-bit programmable modulus
• Programmable digital loop filter bandwidth: 10⁻⁴ Hz to 1850 Hz
• Automatic and manual holdover and reference switchover, providing zero delay, hitless, or phase buildout operation
• Programmable priority-based reference switching with manual, automatic revertive, and automatic nonrevertive modes supported
• 5 pairs of clock output pins with each pair useable as differential LVDS/HCSL/CML or as 2 single-ended outputs (1 Hz to 500 MHz)
• 2 differential or 4 single-ended input references
• Crosspoint mux interconnects reference inputs to PLLs
• Supports embedded (modulated) input/output clock signals
• Fast DPLL locking modes
• Provides internal capability to combine the low phase noise of a crystal resonator or crystal oscillator with the frequency stability and accuracy of a TCXO or OCXO
• External EEPROM support for autonomous initialization
• Single 1.8 V power supply operation with internal regulation
• Built in temperature monitor/alarm and temperature compensation for enhanced zero delay performance

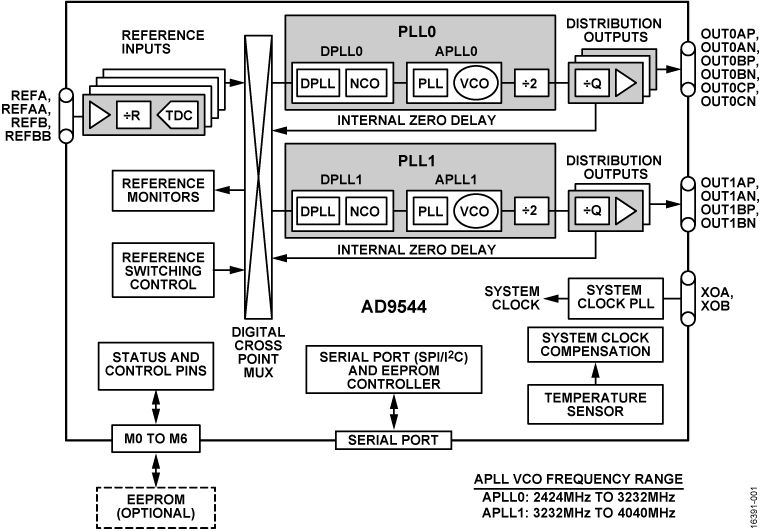

The 10 clock outputs of the AD9544 are synchronized to any one of up to four input references. The digital phase-locked loops (DPLLs) reduce timing jitter associated with the external references. The digitally controlled loop and holdover circuitry continuously generate a low jitter output signal, even when all reference inputs fail.

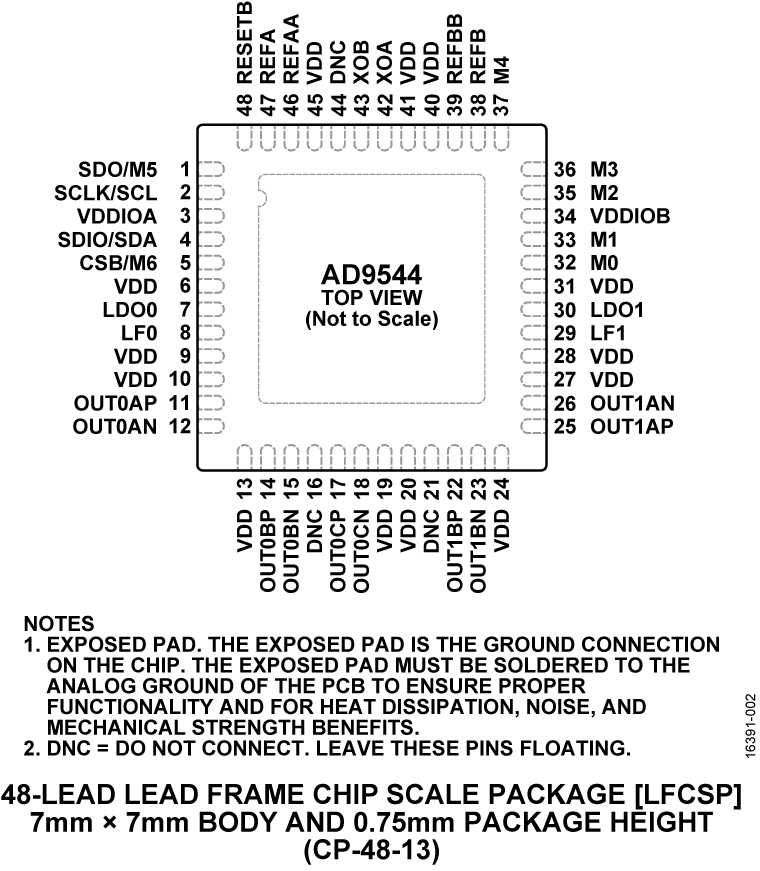

The AD9544 is available in a 48-lead LFCSP (7 mm × 7 mm) package and operates over the −40°C to +85°C temperature range.

Note that throughout this data sheet, multifunction pins, such as SDO/M5, are referred to either by the entire pin name or by a single function of the pin, for example, M5, when only that function is relevant.

Appliations

• SyncE and GPS synchronization and jitter cleanup
• Optical transport networks (OTN), SDH, and macro and small cell base stations
• OTN mapping/demapping with jitter cleaning
• Small base station clocking, including baseband and radio
• Stratum 2, Stratum 3e, and Stratum 3 holdover, jitter cleanup, and phase transient control
• JESD204B support for analog-to-digital converter (ADC) and digital-to-analog converter (DAC) clocking
• Cable infrastructures
• Carrier Ethernet
