AD9266

RECOMMENDED FOR NEW DESIGNS

16-Bit, 20/40/65/80 MSPS, 1.8 V Analog-to-Digital Converter

Analog Devices AD9266 Product Info

10 February 2026 5

Features

  • 1.8 V analog supply operation
  • 1.8 V to 3.3 V output supply
  • SNR
    • 77.6 dBFS at 9.7 MHz input
    • 71.1 dBFS at 200 MHz input
  • SFDR
    • 93 dBc at 9.7 MHz input
    • 80 dBc at 200 MHz input
  • Low power
    • 56 mW at 20 MSPS
    • 113 mW at 80 MSPS
  • Differential input with 700 MHz bandwidth
  • See data sheet for additional features

AD9266-EP supports defense and aerospace applications (AQEC standard)

  • Download the AD9266-EP data sheet (pdf)
  • Military temperature range (−55°C to +125°C)
  • Controlled manufacturing baseline
  • Enhanced product change notification
  • Qualification data available on request
  • V62/12660 DSCC Drawing Number

Part details & applications

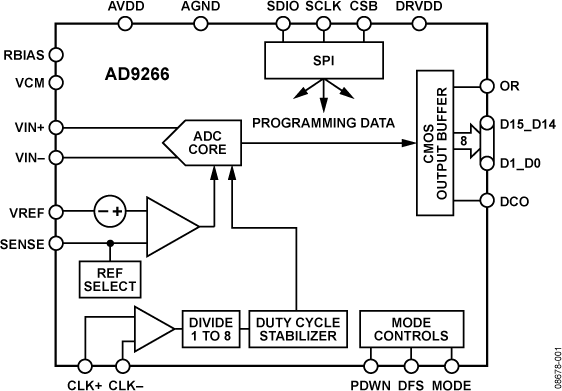

The AD9266 is a monolithic, single-channel 1.8 V supply, 16-bit, 20 MSPS/40 MSPS/65 MSPS/80 MSPS analog-to-digital converter (ADC). It features a high performance sample-and-hold circuit and on-chip voltage reference.

The product uses multistage differential pipeline architecture with output error correction logic to provide 16-bit accuracy at 80 MSPS data rates and to guarantee no missing codes over the full operating temperature range.

The ADC contains several features designed to maximize flexibility and minimize system cost, such as programmable clock and data alignment and programmable digital test pattern generation. The available digital test patterns include built-in deterministic and pseudorandom patterns, along with custom user-defined test patterns entered via the serial port interface (SPI).

A differential clock input with a selectable internal 1-to-8 divide ratio controls all internal conversion cycles. An optional duty cycle stabilizer (DCS) compensates for wide variations in the clock duty cycle while maintaining excellent overall ADC performance.

The interleaved digital output data is presented in offset binary, gray code, or twos complement format. A DCO is provided to ensure proper latch timing with receiving logic. Both 1.8 V and 3.3 V CMOS levels are supported.

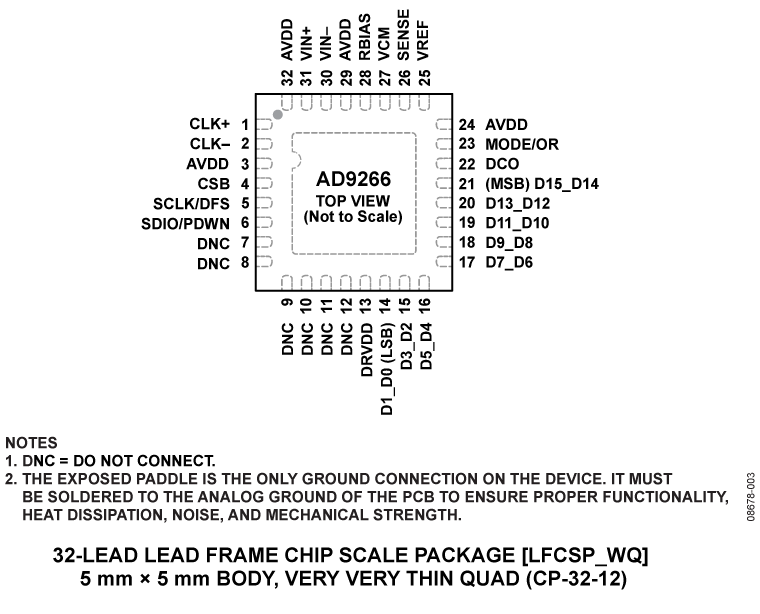

The AD9266 is available in a 32-lead RoHS-compliant LFCSP and is specified over the industrial temperature range (−40°C to +85°C).

Product Highlights

  1. The AD9266 operates from a single 1.8 V analog power supply and features a separate digital output driver supply to accommodate 1.8 V to 3.3 V logic families.
  2. The sample-and-hold circuit maintains excellent performance for input frequencies up to 200 MHz and is designed for low cost, low power, and ease of use.
  3. A standard serial port interface supports various product
