Analog Devices AD9129 Product Info

• DAC update rate: up to 5.7 GSPS
• Direct RF synthesis at 2.85 GSPS data rate
  • DC to 1.425 GHz in baseband mode
  • DC to 1.0 GHz in 2× interpolation mode
  • 1.425 GHz to 4.2 GHz in Mix-Mode
• Bypassable 2× interpolation
• Excellent dynamic performance
• Supports DOCSIS 3.0 wideband ACLR/harmonic performance
  • 8 QAM carriers: ACLR > 65 dBc
• Industry-leading single/multicarrier IF or RF synthesis
  • 4-carrier W-CDMA ACLR at 2457.6 MSPS
    • f_OUT = 900 MHz, ACLR = 71 dBc (baseband mode)
    • f_OUT = 2100 MHz, ACLR = 68 dBc (Mix-Mode)
    • f_OUT = 2700 MHz, ACLR = 67 dBc (Mix-Mode)
• Dual-port LVDS and DHSTL data interface
  • Up to 1.425 GSPS operation
  • Source synchronous DDR clocking with parity bit
• Low power: 1.0 W at 2.85 GSPS (1.3 W at 5.7 GSPS)

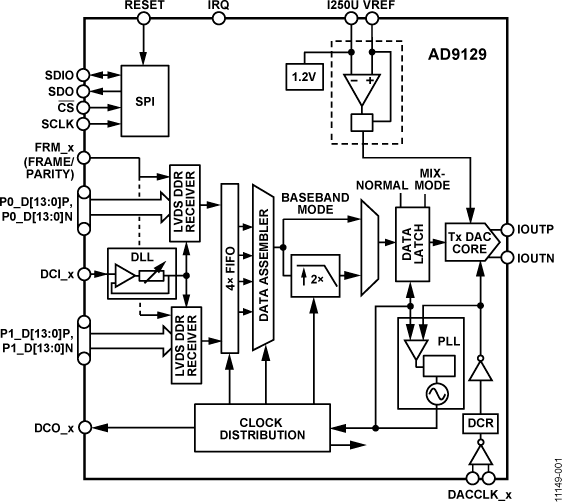

The AD9119/AD9129 are high performance, 11-/14-bit RF digital-to-analog converters (DACs) supporting data rates up to 2.85 GSPS. The DAC core is based on a quad-switch architecture that enables dual-edge clocking operation, effectively increasing the DAC update rate to 5.7 GSPS when configured for Mix-Mode™ or 2× interpolation. The high dynamic range and bandwidth enable multicarrier generation up to 4.2 GHz.

In baseband mode, wide bandwidth capability combines with high dynamic range to support from 1 to 158 contiguous carriers for CATV infrastructure applications. A choice of two optional 2× interpolation filters is available to simplify the postreconstruction filter by effectively increasing the DAC update rate by a factor of 2. In Mix-Mode operation, the AD9119/AD9129 can reconstruct RF carriers in the second and third Nyquist zone while still maintaining exceptional dynamic range up to 4.2 GHz. The high performance NMOS DAC core features a quad-switch architecture that enables industry-leading direct RF synthesis performance with minimal loss in output power. The output current can be programmed over a range of 9.5 mA to 34.4 mA.

The AD9119/AD9129 include several features that may further simplify system integration. A dual-port, source synchronous LVDS interface simplifies the data interface to a host FPGA/ASIC. A differential frame/parity bit is also included to monitor the integrity of the interface. On-chip delay locked loops (DLLs) optimize timing between different clock domains.

A serial peripheral interface (SPI) configures the AD9119/ AD9129 and monitors the status of readback registers. The AD9119/AD9129 are manufactured on a 0.18 μm CMOS process and operates from +1.8 V and −1.5 V supplies. It is supplied in a 160-ball chip scale package ball grid array.

Product Highlights
