AD8192

NOT RECOMMENDED FOR NEW DESIGNS

2:1 HDMI/DVI Switch with Equalization and DDC/CEC Buffers

Analog Devices AD8192 Product Info

10 February 2026 6

Features

Four TMDS channels per link:
Supports 250 Mbps - 2.25 Gbps data rates and beyond
Supports 25 MHz - 225 MHz pixel clocks and beyond
Fully buffered unidirectional inputs/outputs
Globally-switchable 50 Ω on-chip terminations
Three auxiliary channels per link:
Buffered and switched DDC bus (SDA and SCL)
DDC bus logic level translation (3.3 V, 5 V)
Buffered CEC bus with integrated pull-up resistors (27 kΩ)
Hot plug detect pulse low on channel switch

2 inputs, 1 output HDMI/DVI links
HDMI 1.3 receive & transmit compliant
Equalized inputs and pre-emphasized outputs
Fully flexible input/output mapping
Input terminations disabled for unselected inputs
Input/output capacitance isolation
Output disable feature:
Reduced power dissipation
Output termination removal on TMDS channels
Single-supply operation (3.3 V)
Standards compatible: DVI, HDMI 1.3, HDCP, CEC
Serial (I²C slave) control interface

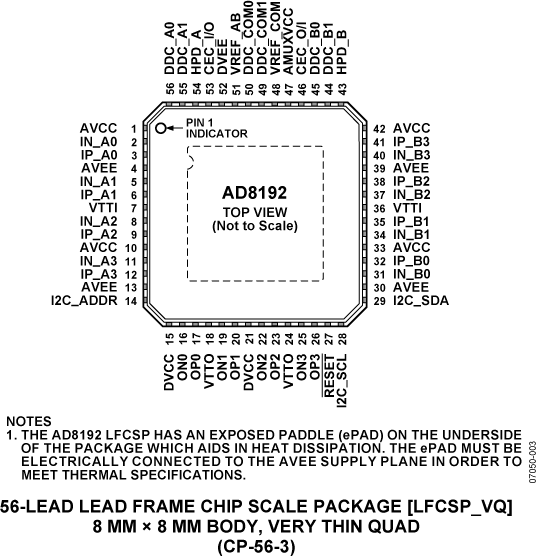

56-pin 8 mm × 8 mm LFCSP Pb-free package

Part details & applications

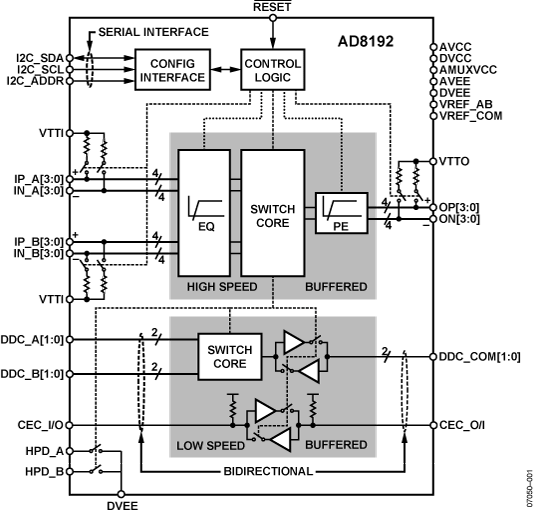

The AD8192 is a complete HDMI^™/DVI link switch featuring equalized TMDS inputs and pre-emphasized TMDS outputs ideal for systems with long cable runs. The TMDS outputs can be set to a high impedance state to reduce the power dissipation and/or allow the construction of larger arrays using the wire-OR technique. The AD8192 includes bidirectional buffering for the DDC bus and CEC line, with integrated pull-up resistors for the CEC line. The AD8192 is available in a space-saving, 56-lead LFCSP surface-mount, lead-free plastic package specified to operate over the −40°C to +85°C temperature range.

PRODUCT HIGHLIGHTS

Fully HDMI 1.3a transmit and receive compliant.
Supports data rates up to 2.25 Gbps, enabling greater than 1080p HDMI formats with deep color (12-bit) and UXGA (1600 × 1200) DVI resolutions.
Input cable equalizer enables use of long cables; more than 20 m (24 AWG) at data rates up to 2.25 Gbps.
Auxiliary switch isolates and buffers the DDC bus and the CEC line, improving total system capacitance limit.
Hot plug detect (HPD) signal is pulsed low on link switch.
Manually or automatically switched input terminations.

APPLICATIONS

Front panel buffer for advanced television (HDTV) sets
Standalone HDMI switcher
Multiple input displays
Projectors
A/V receivers
Set-top boxes
