Analog Devices Inc.
0
PRODUCTION

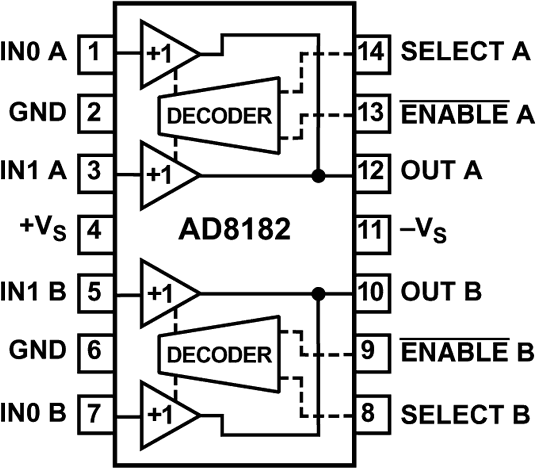

The AD8182S is a high speed 2-to-1 multiplexers. It offers a wide -3 dB signal bandwidth along with a fast slew rate. With better excellent crosstalk and isolation, it is useful in many high speed applications. The differential gain and differential phase error, along with its gain flatness make AD8182 ideal for professional video multiplexing. It offers 5 ns switching time making them an excellent choice for pixel switching (picture-in-picture) while consuming only less than 3.8 mA typical (per 2:1 mux) on ±5 V supply voltage.
Both devices offer a high speed disable feature allowing the output to be put into a high impedance state. This allows multiple outputs to be connected together for cascading stages while the "OFF" channels do not load the output bus. They operate on voltage supplies of ±5 V.
