AD7915

PRODUCTION

16-Bit, 1 MSPS/500 kSPS PulSAR ADCs in MSOP/LFCSP

Analog Devices AD7915 Product Info

10 February 2026 2

Features

High performance
- True differential analog input range: ±VREF
  - 0 V to V_REF with V_REF between 2.5 V and 5 V
- Throughput: 1 MSPS/500 kSPS options
  - Zero latency architecture
- 16-bit resolution with no missing codes
- INL: ±0.4 LSB typical, ±1 LSB maximum
- Dynamic range: 95.5 dB, V_REF = 5 V
- SNR: 94 dB at f_IN = 1 kHz, V_REF = 5 V
- THD: −118.5 dB at f_IN = 1 kHz, V_REF = 5 V
- SINAD: 93.5 dB at f_IN = 1 kHz, V_REF = 5 V

Low power dissipation
- Single-supply 2.5 V operation with 1.8 V/2.5 V/3 V/5 V logic interface
- AD7915: 4 mW at 1 MSPS (VDD only) 7 mW at 1 MSPS (total)
- 70 μW at 10 kSPS
Proprietary serial interface: SPI-/QSPI-/MICROWIRE™-/DSP-compatible¹
10-lead packages: MSOP and 3 mm × 3 mm LFCSP
Wide operating temperature range: −40°C to +125°C

Part details & applications

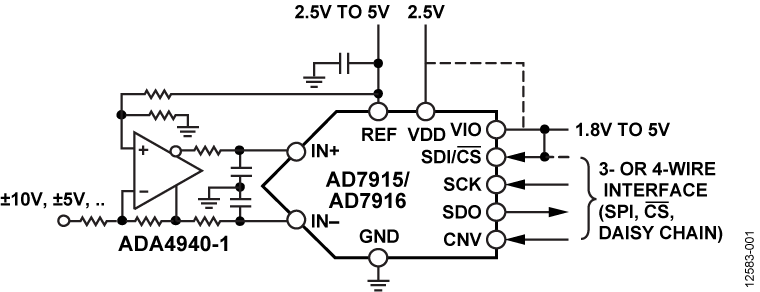

The AD7915/AD7916 are 16-bit, successive approximation, analog-to-digital converters (ADCs) that operate from a single power supply, VDD. They contain a low power, high speed, 16-bit sampling ADC and a versatile serial interface port. On the CNV rising edge, the AD7915/AD7916 sample the voltage difference between the IN+ and IN− pins. The voltages on these pins typically swing in opposite phases between 0 V and VREF. The reference voltage, REF, is applied externally and can be set independent of the supply voltage, VDD. The power consumption of the AD7915/AD7916 scales linearly with throughput.

The AD7915/AD7916 are serial peripheral interface (SPI) compatible, which features the ability, using the SDI input, to daisy-chain several ADCs on a single 3-wire bus. They are compatible with 1.8 V, 2.5 V, 3 V, and 5 V logic using the separate VIO supply.

The AD7915/AD7916 are available in a 10-lead MSOP or a 10-lead LFCSP with operation specified from −40°C to +125°C.

APPLICATIONS

Automated test equipment
Data acquisition systems
Medical instruments
Machine automation
