AD7787

PRODUCTION

Low Power, 2-Channel 24-Bit Sigma-Delta ADC

Analog Devices AD7787 Product Info

10 February 2026 6

Features

Power
Supply: 2.5 V to 5.25 V current
Normal: 75 µA max
Power-down: 1 µA max
RMS noise: 1.1 µV at 9.5 Hz update rate
19.5-bit p-p resolution (22 bits effective resolution)
Integral nonlinearity: 3.5 ppm typical
Simultaneous 50 Hz and 60 Hz rejection
Internal clock oscillator

Rail-to-rail input buffer
VDD monitor channel
Temperature range: –40°C to +105°C
10-lead MSOP
Interface
3-wire serial
SPI^®, QSPI^™, MICROWIRE^™ and DSP compatible
Schmitt trigger on SCLK

Part details & applications

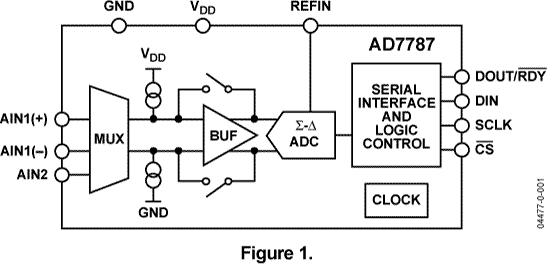

The AD7787 is a low power, complete analog front end for low frequency measurement applications. It contains a low noise 24-bit Σ-Δ ADC with one differential input and one single-ended input that can be buffered or unbuffered.

The device operates from an internal clock. Therefore, the user does not have to supply a clock source to the device. The output data rate from the part is software programmable and can be varied from 9.5 Hz to 120 Hz, with the rms noise equal to 1.1 µV at the lower update rate. The internal clock frequency can be divided by a factor of 2, 4, or 8, which leads to a reduction in the current consumption. The update rate, cutoff frequency, and settling time will scale with the clock frequency.

The part operates with a power supply from 2.5 V to 5.25 V. When operating from a 3 V supply, the power dissipation for the part is 225 µW maximum. It is housed in a 10-lead MSOP.

APPLICATIONS

Smart transmitters
Battery applications
Portable instrumentation
Sensor measurement
Temperature measurement
Pressure measurement
Weigh scales
4 to 20 mA loops
