AD5821A

PRODUCTION

120 mA, Current Sinking, 10-Bit, I2C DAC

Analog Devices AD5821A Product Info

10 February 2026 6

Features

Current sink: 120 mA

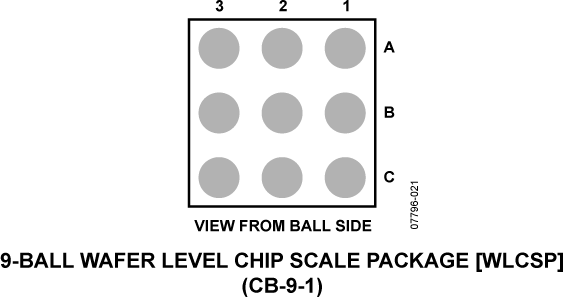

Available in 3 × 3 array WLCSP package
2-wire, (I²C-compatible) 1.8 V serial interface
10-bit resolution
Integrated current sense resistor
Power supply range: 2.7 V to 5.5 V

Guaranteed monotonic over all codes
Power down to 0.5 μA typical
Internal reference
Ultralow noise preamplifier
Power-down function
Power-on reset

Part details & applications

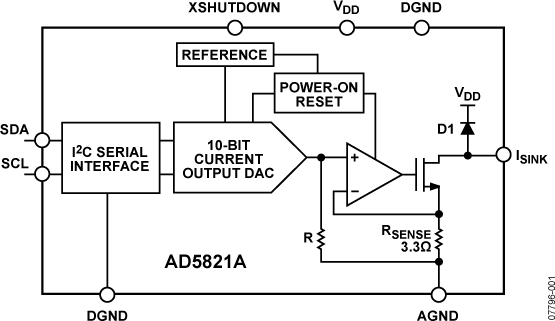

The AD5821A is a single, 10-bit digital-to-analog converter (DAC) with output current sinking capability of 120 mA. It features an internal reference and operates from a single 2.7 V to 5.5 V supply. The DAC is controlled via a 2-wire, I²C®-compatible serial interface that operates at clock rates up to 400 kHz.

The AD5821A incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V and remains there until a valid write takes place. It has a power-down feature that reduces the current consumption of the device to 1 μA maximum.
The AD5821A is designed for autofocus, image stabilization, and optical zoom applications in camera phones, digital still cameras, and camcorders.

The AD5821A is also suitable for many industrial applications, such as controlling temperature, light, and movement without derating over temperatures ranging from −30°C to +85°C.
The I²C 7-bit address for the AD5821A is 0xC.
