Analog Devices AD5757 Product Info

•  16-bit resolution and monotonicity Dynamic power control for thermal management or external PMOS mode
• Current output ranges: 0 mA to 20 mA, 4 mA to 20 mA, or 0 mA to 24 mA
  • ±0.05% total unadjusted error (TUE) maximum
• User programmable offset and gain On-chip diagnostics
• On-chip reference (±10 ppm/°C maximum)
• −40°C to +105°C temperature range

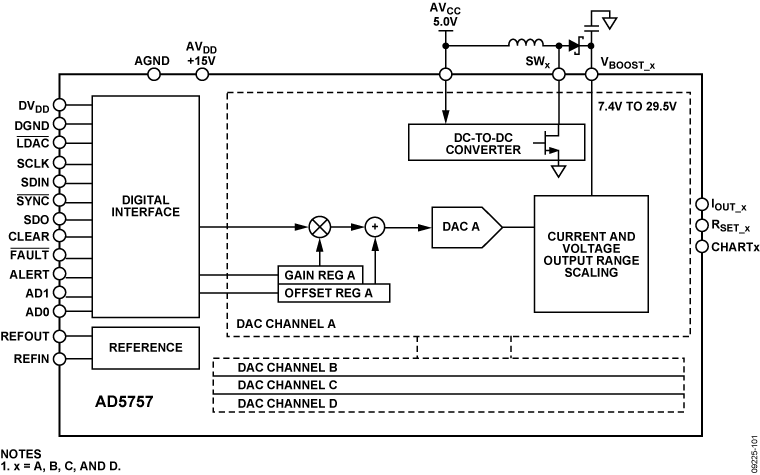

The AD5757 is a quad, current output DAC that operates with a power supply range from 10.8 V to 33 V. On-chip dynamic power control minimizes package power dissipation by regulating the voltage on the output driver from 7.4 V to 29.5 V, using a dc-to-dc boost converter optimized for minimum on-chip power dissipation.

Each channel has a corresponding CHART pin so that HART signals can be coupled onto the current output of the AD5757.

The part uses a versatile 3-wire serial interface that operates at clock rates of up to 30 MHz and is compatible with standard SPI, QSPI^™, MICROWIRE^™, DSP, and microcontroller interface standards. The interface also features optional CRC-8 packet error checking, as well as a watchdog timer that monitors activity on the interface.

Product Highlights

1. Dynamic power control for thermal management.
2. 16-bit performance.
3. Multichannel.
4. HART Compliant.

Applications

• Process control
• Actuator Control
• Programmable logic controllers (PLCs)
• HART Network Connectivity
