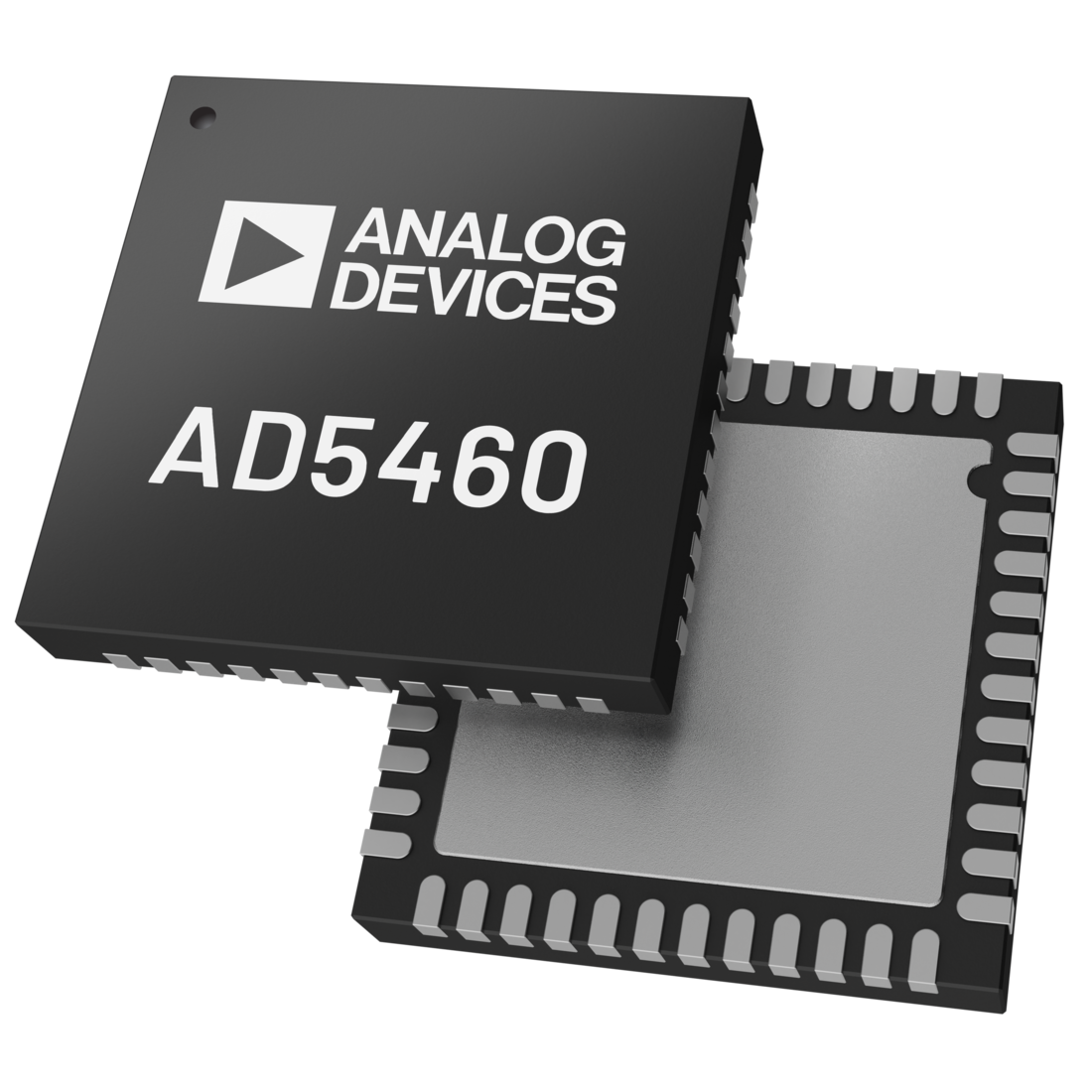

AD5460

RECOMMENDED FOR NEW DESIGNS

Quad-Channel, Software Configurable Analog Output The AD5460 is a quad-channel, voltage and current output digital- to-analog converter (DAC) that operates with a wide range of power supply and flexible configurations. AD5460 has adaptive power switching

Analog Devices AD5460 Product Info

10 February 2026 8

Features

Quad-channel software configurable analog output
16-bit monotonic DAC, per channel
Current output range:
- 0mA to 25mA
- 0mA to 20mA
- 4mA to 20mA
Voltage output:
- 0V to 12V
- ±12V
Adaptive power switching drivers, integrated dual-rail adaptive power switching drivers, which reduce power dissipation by 40% in current output mode

On-chip diagnostics including open-circuit and short-circuit detection
Overvoltage up to +/−50V tolerant on screw terminal facing pins, powered or unpowered
Wide-power supply range
Internal 10ppm/°C reference
SPI compatible
−40°C to +105°C operating temperature range
Available in 48-lead 7mm × 7mm × 0.75mm (with exposed pad) LFCSP (CP-48-13)

Part details & applications

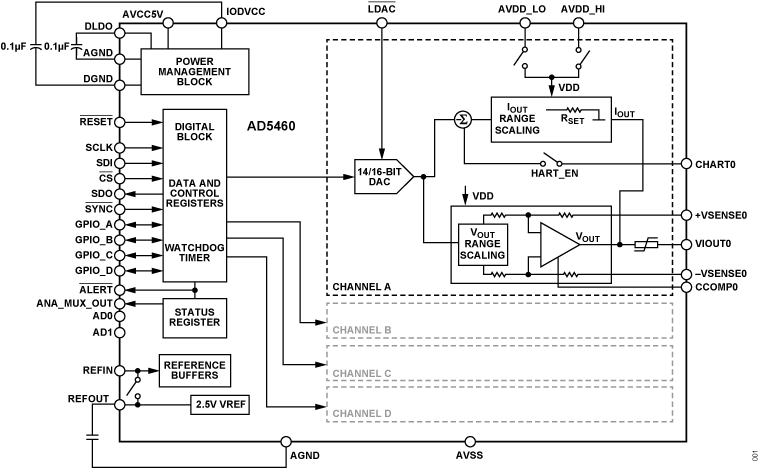

The AD5460 is a quad-channel, voltage, and current output digital- to-analog converter (DAC) that operates with a wide range of power supply and flexible configurations. The AD5460 has adaptive power switching drivers. On-chip power dissipation is minimized by using an integrated adaptive power switching supply driver on each channel. In adaptive power switching drivers, select the required power supply voltage by choosing between the high voltage supply (AVDD_HI) and the low voltage supply (AVDD_LO), which depends on the output voltage level required. The CHART pin enables a HART signal to be coupled onto the current output.

The device uses a versatile 4-wire serial-peripheral interface (SPI) and is compatible with standard SPI, QSPI^™, MICROWIRE^™, DSP, and microcontroller interface standards. The interface also features SPI cyclic redundancy check (CRC) and a watchdog timer.

Applications

Factory automation
Actuator control
Group isolated analog outputs
PLC and DCS applications
HART network connectivity
