AD5307

PRODUCTION

2.5 V to 5.5 V, 400 µA, Quad Voltage Output 8-Bit DAC in a 16-Lead TSSOP

Analog Devices AD5307 Product Info

10 February 2026 4

Features

Four 8-Bit DACS in 16-Lead TSSOP
Low Power: 500 µA @ 5 V, 400 µA @ 3 V
Power-Down to 300 nA @ 5 V, 90 nA @ 3 V
Guaranteed Monotonic by Design
Power-On-Reset to Zero Volts
Double-Buffered Input Logic
Output Range: O-V_REF O-2V_REF
_{Low Power, SPI™, QSPI™, MICROWIRE™ and DSP-Compatible 3-Wire Serial Interface}

Simultaneous Update of DAC Outputs via LDAC pin (active low)
Asynchronous Clear Facility via CLR pin (active low)
SDO Daisy-Chaining Option
Buffered/Unbuffered Reference Input Options for each DAC pair

Part details & applications

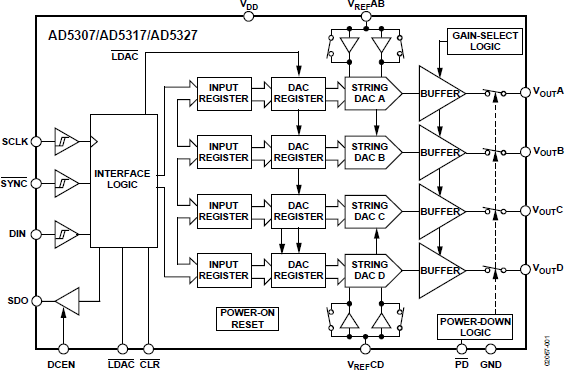

The AD5307/AD5317/AD5327 are quad 8-, 10-, and 12-bit buffered voltage-output DACs, in a 16-lead TSSOP package, which operate from a single 2.5 V to 5.5 V supply consuming 400 µA at 3 V. Their on-chip output amplifiers allow the outputs to swing rail-to-rail with a slew rate of 0.7 V/µs. The AD5307/ AD5317/AD5327 utilize a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with standard SPI, QSPI, MICROWIRE, and DSP interface standards.

PRODUCT HIGHLIGHTS

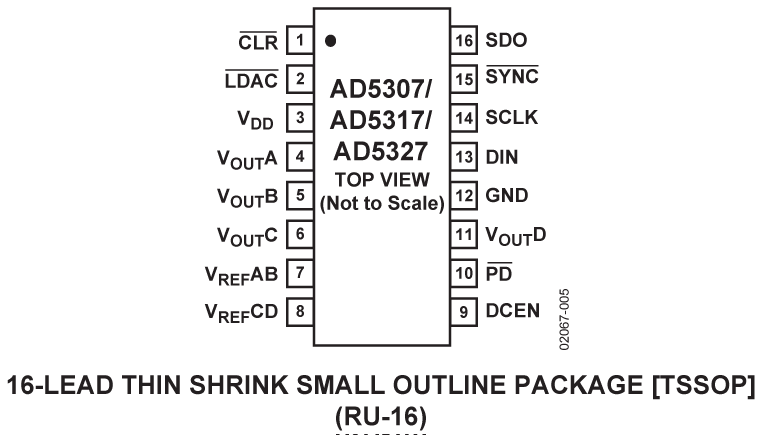

Available in a 16-lead TSSOP package
Low power, single supply operation from 2.5 V to 5.5 V supply
Consumes 1.2 mW at 3 V and 2.5 mW at 5 V
Rail-to-Rail output with a slew rate of 0.7 V/µs
3-wire serial interface with clock rates up to 30 MHz
Pin- and Software-Compatible with the AD5317 (10-Bit) and the AD5327 (12-Bit)
