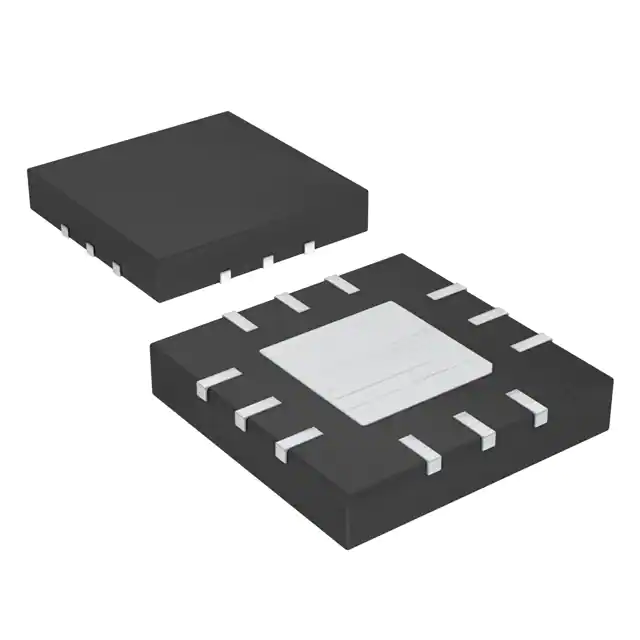

MAX5530ETC+ Analog Devices Inc. Data Acquisition - DAC image
  • MAX5530ETC+ Analog Devices Inc. Data Acquisition - DAC image
Images are for reference only

Analog Devices Inc. MAX5530ETC+

Manufacturer
Analog Devices Inc.
Mfr. Part #
MAX5530ETC+
WLX Part #
A224260168359
Package
12-WQFN Exposed Pad
Datasheet
MAX5530ETC+ Datasheet (PDF)
SEND E-mail RFQ

Recommended For You

MAX5530ETC+ Parameter Description

The MAX5530/MAX5531 are single, 12-bit, ultra-low- power, voltage-output, digital-to-analog converters (DACs) offering rail-to-rail buffered voltage outputs. The DACs operate from a 1.8V to 5.5V supply and consume less than 6µA, making them desirable for low-power and low-voltage applications. A shutdown mode reduces overall current, including the reference input current, to just 0.18µA. The MAX5530/MAX5531 use a 3-wire serial interface that is compatible with SPI™, QSPI™, and MICROWIRE™.

At power-up, the MAX5530/MAX5531 outputs are driven to zero scale, providing additional safety for applications that drive valves or for other transducers that must be off during power-up. The zero-scale outputs enable glitch- free power-up.

The MAX5530 accepts an external reference input. The MAX5531 contains an internal reference and provides an external reference output. Both devices have force-sense-configured output buffers.

The MAX5530/MAX5531 are available in a 4mm x 4mm x 0.8mm, 12-pin, thin QFN package and are guaranteed over the extended -40°C to +85°C temperature range.

For 10-bit compatible devices, refer to the MAX5520/MAX5521 data sheet. For 8-bit compatible devices, refer to the MAX5510/MAX5511 data sheet.

Applications

  • Automatic Trimming and Calibration in Factory or Field
  • Chemical Sensor Cell Bias for Gas Monitors
  • Industrial Process Control and Remote Industrial Devices
  • Instrumentation
  • Portable Battery-Powered Devices
  • Programmable Liquid Crystal Display (LCD) Bias
  • Programmable Voltage and Current Sources
  • Remote Data Conversion and Monitoring
