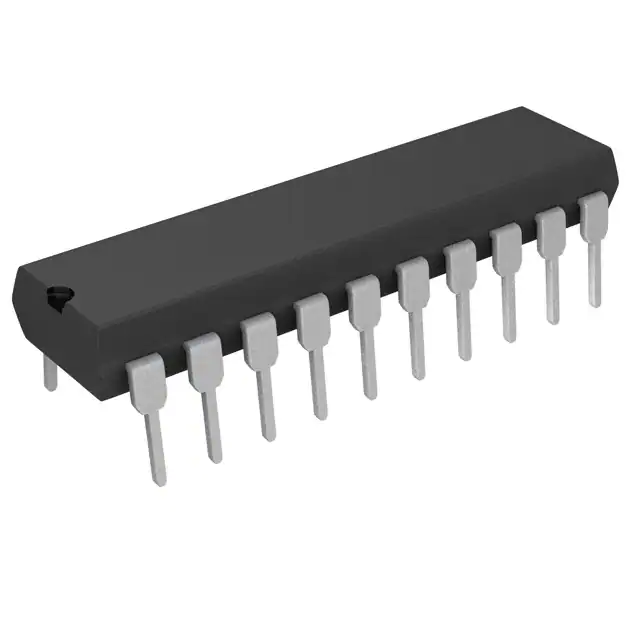

LTC1290CCSW#PBF Analog Devices Inc. Data Acquisition - ADCs/DACs - Special Purpose image
  • LTC1290CCSW#PBF Analog Devices Inc. Data Acquisition - ADCs/DACs - Special Purpose image
Images are for reference only

Analog Devices Inc. LTC1290CCSW#PBF

Manufacturer
Analog Devices Inc.
Mfr. Part #
LTC1290CCSW#PBF
WLX Part #
A224260165502
Package
20-SOIC (0.295", 7.50mm Width)
Datasheet
LTC1290CCSW#PBF Datasheet (PDF)

LTC1290CCSW#PBF Parameter Description

The LTC1290 is a data acquisition component which contains a serial I/O successive approximation A/D converter. It uses LTCMOS switched capacitor technology to perform either 12-bit unipolar or 11-bit plus sign bipolar A/D conversions. The 8-channel input multiplexer can be configured for either single-ended or differential inputs (or combinations thereof). An on-chip sample-and-hold is included for all single-ended input channels. When the LTC1290 is idle it can be powered down with a serial word in applications where low power consumption is desired.

The serial I/O is designed to be compatible with industry standard full duplex serial interfaces. It allows either MSB- or LSB-first data and automatically provides 2's complement output coding in the bipolar mode. The output data word can be programmed for a length of 8, 12 or 16 bits. This allows easy interface to shift registers and a variety of processors.

Applications

  • Resolution: 12 Bits
  • Fast Conversion Time: 13µs Max Over Temp
  • Low Supply Current: 6.0mA
