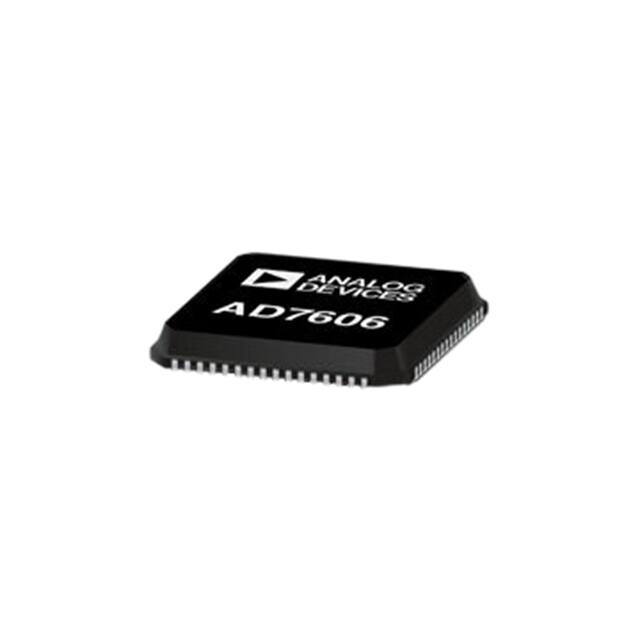

AD7606C-18BSTZ-RL Analog Devices Inc. Data Acquisition - ADC image
  • AD7606C-18BSTZ-RL Analog Devices Inc. Data Acquisition - ADC image
Images are for reference only

Analog Devices Inc. AD7606C-18BSTZ-RL

Manufacturer
Analog Devices Inc.
Mfr. Part #
AD7606C-18BSTZ-RL
WLX Part #
A22507255695
Package
64-LQFP
Datasheet
AD7606C-18BSTZ-RL Datasheet (PDF)

AD7606C-18BSTZ-RL Parameter Description

The AD7606C-18 is an 18-bit, simultaneous sampling, analog-to-digital data acquisition system (DAS) with eight channels. Each channel contains analog input clamp protection, a programmable gain amplifier (PGA), a low-pass filter (LPF), and an 18-bit successive approximation register (SAR) analog-to-digital converter (ADC). The AD7606C-18 also contains a flexible digital filter, a low drift, 2.5 V precision reference, a reference buffer to drive the ADC, and flexible parallel and serial interfaces.

The AD7606C-18 operates from a single 5 V supply and accommodates the following input ranges when sampling at throughput rates of 1 MSPS for all channels:

  • Bipolar single-ended: ±12.5 V, ±10 V, ±6.25 V, ±5 V, and ±2.5 V
  • Unipolar single-ended: 0 V to 12.5 V, 0 V to 10 V, and 0 V to 5 V
  • Bipolar differential: ±20 V, ±12.5 V, ±10 V, and ±5 V

The input clamp protection tolerates voltages up to ±21 V. The single supply operation, on-chip filtering, and high input impedance eliminate the need for external driver op amps, which require bipolar supplies. For applications with lower throughput rates, the AD7606C-18 flexible digital filter can be used to improve noise performance.

In hardware mode, the AD7606C-18 is fully compatible with the AD7608 and AD7609. In software mode, the following advanced features are available:

  • Analog input range selectable per channel with added ranges available
  • High bandwidth mode (220 kHz) selectable per channel
  • Additional oversampling options with an oversampling ratio up to 256
  • System gain, system offset, and system phase calibration, per channel
  • Analog input open circuit detector
  • Diagnostic multiplexer
  • Monitoring functions (serial peripheral interface (SPI) invalid read and write, cyclic redundancy check (CRC), busy stuck monitor, and rese
